WyreStorm Network HD120 Series 4K30 4:2:0 Decoder - NHD-120-RX
The Network HD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.

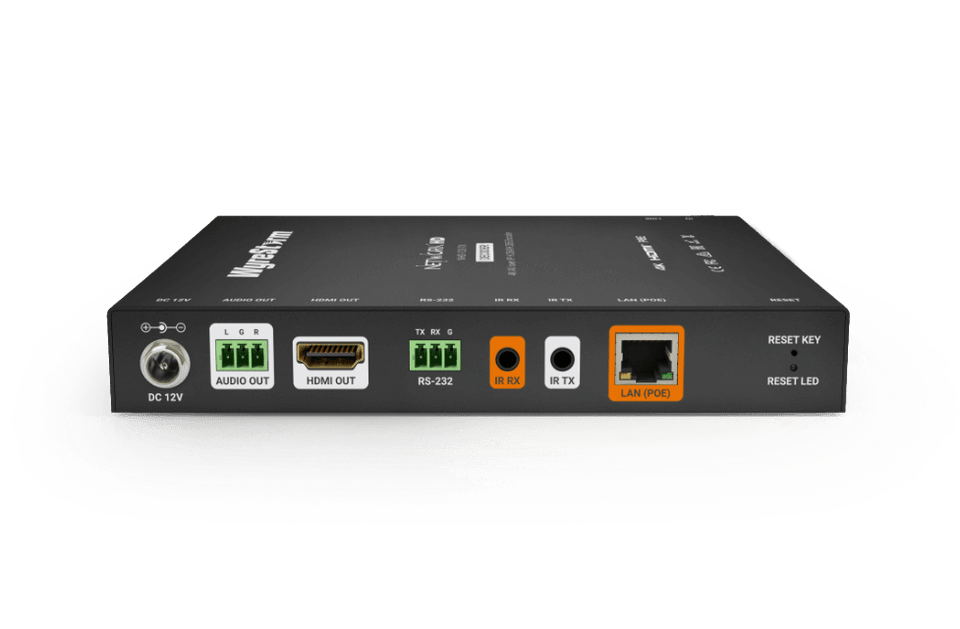

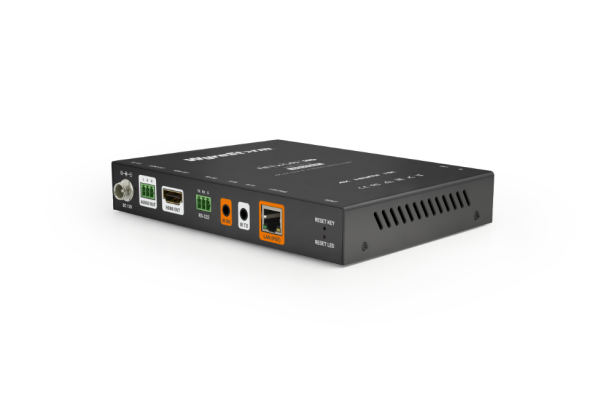

The NHD-120-RX can decode AV signals from the transmitter using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
The NHD-120-RX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
Security is key in today’s world. The Network HD 120 series support AES 128-bit AV encryption over the network. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect.
The NHD-120-RX also allows you to create mosaic video walls with image rotation.
Features
- Supports up to 4K @ 30Hz video content
- Support all SD and HD formats – including interlaced content
- Analog audio de-embed for easy connection to external audio DSP or amplifier
- Image scaling – use mixed resolution displays throughout an installation
- Seamless video switching – no black screens or freeze frames
- Hugely scalable I/O, utilizing multicast technology
- Flexible IP address settings: AutoIP/Static/DHCP
- Customizable CEC, IR or RS-232 control of connected devices
- Up to 16×16 video walls with image scaling, bezel compensation and rotation
- Mosaic video walls for custom screen orientation.
- Custom “No Source” idle image upload for branded down time
- Breakaway, independent routing of all video, audio, IR, and RS-232 streams
- Infrared signal generation via API – supports Hex Pronto format
- Batch firmware update and batch settings functions offers a massive reduction on installation times
- HDCP 2.2 compliant
- IEEE 802.3af PoE compliant PD
- Includes Wall and Rack mounting brackets
