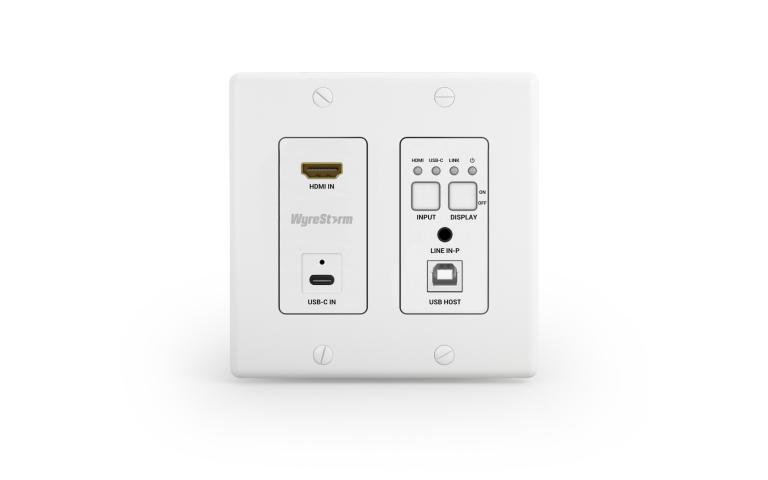

UNCOMPRESSED SIGNAL TRANSMISSION
HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable up to an astonishing 100m/328ft!
PACKED WITH FEATURES
It’s not just an HDBaseT switcher; it’s a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high-speed charging of up to 60 watts for devices like laptops and tablets. With remarkable flexibility, it can seamlessly power the receiver or draw power from it. It’s truly the ultimate in-wall command center.
AUDIO DE-EMBED AND PASSTHROUGH
The SW-120-TX3-Ux offers both source audio de-embed from HDMI and a separate independent audio pass-through lane to send separate audio down to the RX simultaneously.
API-DRIVEN INTELLIGENCE
Featuring a unique API, the SW-120-TX3-Ux intelligently recognizes whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller such as the SYN-KEY10.
- HDBaseT 3.0 Switching Transmitter supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 passthrough offering 300Mbps transfer and HID extension
- Features USB-C charging of up to 60 watts (with compatible PSU, not included)
- Supports independent analog audio lane (pass-through) transmitter to receiver
- Bidirectional RS-232 and CEC pass-through communication
- Shared RS-232 port; API control or passthrough to RX
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
- Bidirectional PoH
