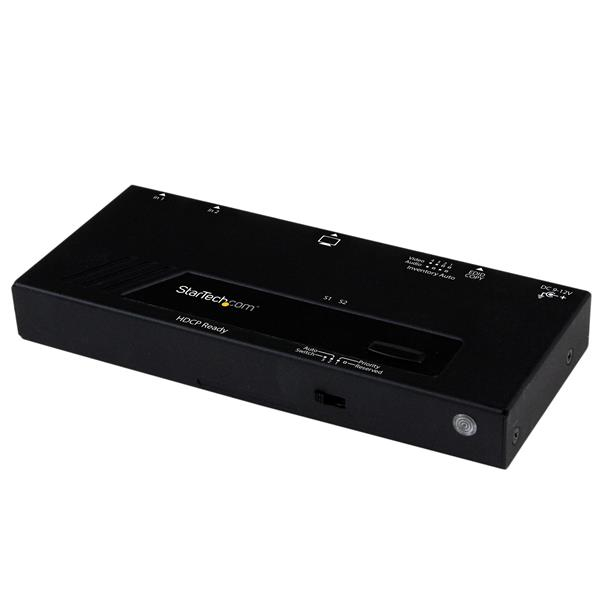

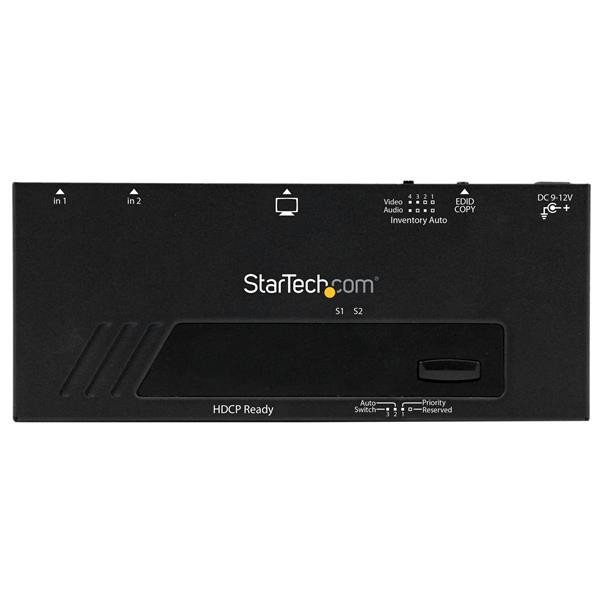

StarTech.com 2 Port HDMI Switch w/ Automatic and Priority Switching - 1080p - TAA. Video port type: HDMI. Material: Aluminium, Plastic, Product colour: Black, Maximum operating distance: 10 m. AC input voltage: 100 - 240 V, AC adapter input current: 0.6 A, AC adapter output voltage: 12 V. Certification: CE, FCC, TAA, REACH. Width: 65 mm, Depth: 156 mm, Height: 20 mm
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS221HDQ 2-Port HDMI Auto Switcher. This easy-to-use HDMI switch ensures seamless transition while switching video sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with three different switching modes:
Automatic port selection : Enables your most recently activated video source to be displayed automatically.
Priority port selection : Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Manual port selection : Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | VS221HDQ |
| HSSL part number | UK-STT-VS221HDQ |
| UPC / GTIN | 0065030855020 |
| Product type | Video Switches |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Features | |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum operating distance | 10 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p, 720p |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Audio output channels | 7.1 channels |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 156 mm |
| Height | 20 mm |
| Weight | 290 g |
| Packaging content | |
| Mounting kit | Yes |
| Remote control included | Yes |
| Manual | Yes |
| Plug adapter type | NA, EU, UK, AU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Compliance certificates | RoHS |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-VS221HDQ.
