StarTech.com 4 Port VGA Video Splitter - Wall Mountable. Video port type: VGA, Video out: 4x VGA, Connector(s): 4 - DB15 F, 1 - DB15 M. Maximum resolution: 1600 x 200 pixels, Product colour: Black, Housing material: Plastic. Output voltage: 9 V, Output current: 0.3 A, Power consumption (typical): 2.7 W. Dimensions (WxDxH): 82 x 105 x 28 mm, Weight: 129 g. Package length: 24 cm, Package width: 59 mm, Package height: 162 mm

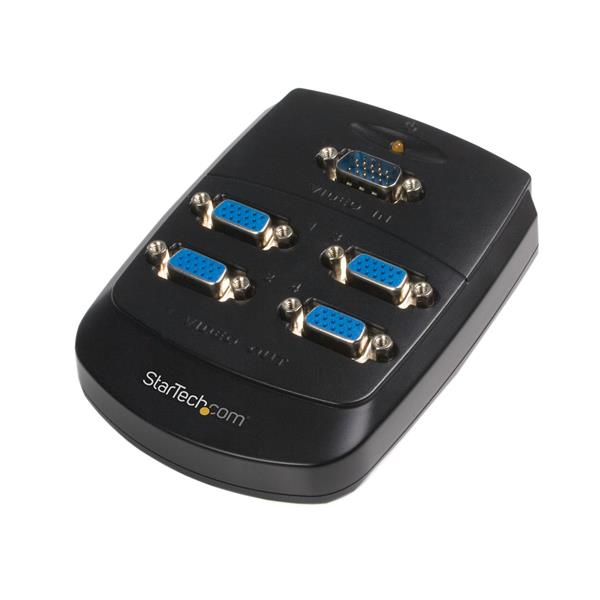

The ST124W 4 Port wall-mountable VGA Video Splitter offers outstanding quality and distance, allowing you to deliver high resolution VGA video from a single video source to up to four monitors simultaneously.
Supporting a maximum VGA video bandwidth of up to 250MHz and resolutions up to 1600 x 1200, the device is sure to deliver on image quality. The wall-mountable multi-display VGA video splitter is very simple to install, allowing you to locate screens up to 65m (210ft) away from the VGA video source.
The video splitter provides versatile installation options, with top-side connection ports the unit can lay flat on or under your workspace , or you have the option to mount the splitter on a wall making it easy to position the VGA splitter as needed. A scalable video splitting solution, the device also allows you to cascade the signal using two additional splitters for broadcast from a single VGA source to up to 64 VGA monitors.
Typical applications of this product would include digital signage, retail and tradeshow environments, educational and government facilities, or corporate displays where high quality multi-monitor VGA video is required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compact design with convenient topside connection lets the unit lay flat or be mounted on the wall - Integrated signal amplifier boosts your connection range to 210 feet (65 meters) - Multiple screens let you communicate your message more effectively to large audiences with greater impact
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | ST124W |
| HSSL part number | UK-STT-ST124W |
| UPC / GTIN | 0065030827522 |
| Product type | Video Splitters |
| Ports & interfaces | |
| Video port type | VGA |
| Video out | 4x VGA |
| Video ports quantity | 4 |
| Connector(s) | 4 - DB15 F, 1 - DB15 M |
| Features | |
| Product colour | Black |
| Housing material | Plastic |
| Maximum resolution | 1600 x 200 pixels |
| Maximum operating distance | 65 m |
| Bandwidth | 250 MHz |
| Certification | CE, FCC |
| Power | |
| Output voltage | 9 V |
| Output current | 0.3 A |
| Power consumption (typical) | 2.7 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 82 x 105 x 28 mm |
| Weight | 129 g |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Cascadable | Yes |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-ST124W.
