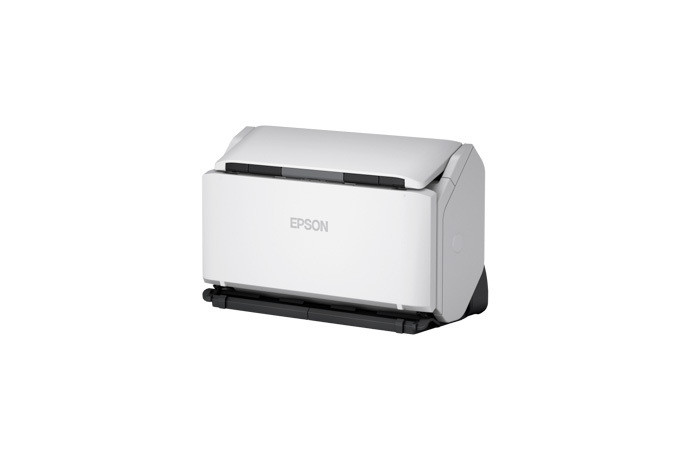

Epson WorkForce B11B255201. Maximum scan size: 304.8 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: White, Display: LCD. Sensor type: Dual CIS, Daily duty cycle (max): 40000 pages, Light source: White LED. Auto document feeder (ADF) input capacity: 120 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A3, A4, A5, A6, A7, A8
Ultra fast, versatile and compact scanner for high-volume business needs.
Designed for busy offices, the DS-32000 large-format document scanner makes it easy to take on any project. It offers speeds up to 90 ppm and includes a host of productivity features, such as a 120-sheet Auto Document Feeder, dual-sided scanning, a programmable 2.7" touchscreen and a paper-protection function — all in a flexible design. With versatile paper support, it provides vertical and horizontal feed options. Accommodating sheets up to 12" x 17", it can also scan folded pages, plastic cards, sealed envelopes, passports and more. The compact DS-32000 fits your workspace and makes storage easy. Plus, it delivers a 40,000-page peak daily duty cycle.
Fast speeds
up to 90 ppm/180 ipm
Built for busy offices
120-sheet Auto Document Feeder; plus, peak daily duty cycle of 40,000 sheets
Flexible feed options
vertical feed for high-volume scanning; horizontal feed for sealed envelopes, folded papers and delicate sheets.
Reliability you can count on
industry-leading service and support; 3-year limited warranty with next-business-day replacement
Versatile paper support
scan documents up to 12" x 17", folded pages, plastic cards, sealed envelopes, passports and more
Easy to use
large, 2.7" touchscreen display for easy access to scan jobs, settings and maintenance features
Specifications
| General | |
|---|---|
| Brand | Epson |
| Manufacturer part number | B11B255201 |
| HSSL part number | UK-B11B255201 |
| UPC / GTIN | 0010343952195 |
| Product type | Scanners |
| Scanning | |
| Maximum scan size | 304.8 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 24 bit |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | White |
| Display | LCD |
| Display diagonal | 6.86 cm (2.7") |
| Touchscreen | Yes |
| Colour display | Yes |
| Built-in display | Yes |
| Performance | |
| Sensor type | Dual CIS |
| Light source | White LED |
| Scan file formats | BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX |
| Daily duty cycle (max) | 40000 pages |
| Scan to | E-mail, FTP, HTTP, PC, USB |
| Scan drivers | ICA, ISIS, TWAIN, WIA |
| Ultrasonic double sheet detection | Yes |
| Scanning noise level | 67 dB |
| Sound pressure level (max) | 53 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 120 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
| Maximum ISO A-series paper size | A3 |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6, A7, A8 |
| Legal | Yes |
| Auto Document Feeder (ADF) media weight | 20 - 413 g/m² |
| Maximum scan area (ADF) | 304.8 x 5588 mm |
| Minimum scan area (ADF) | 50.8 x 69 mm |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 11 W |
| Power consumption (off) | 0.1 W |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.4 W |
| Weight & dimensions | |
| Width | 371 mm |
| Depth | 208 mm |
| Height | 219 mm |
| Weight | 5.8 kg |
| Packaging content | |
| Cables included | USB |
| Bundled software | Epson Document Capture (Mac), Epson Document Capture Pro (Windows), Epson Scan 2 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-B11B255201.
