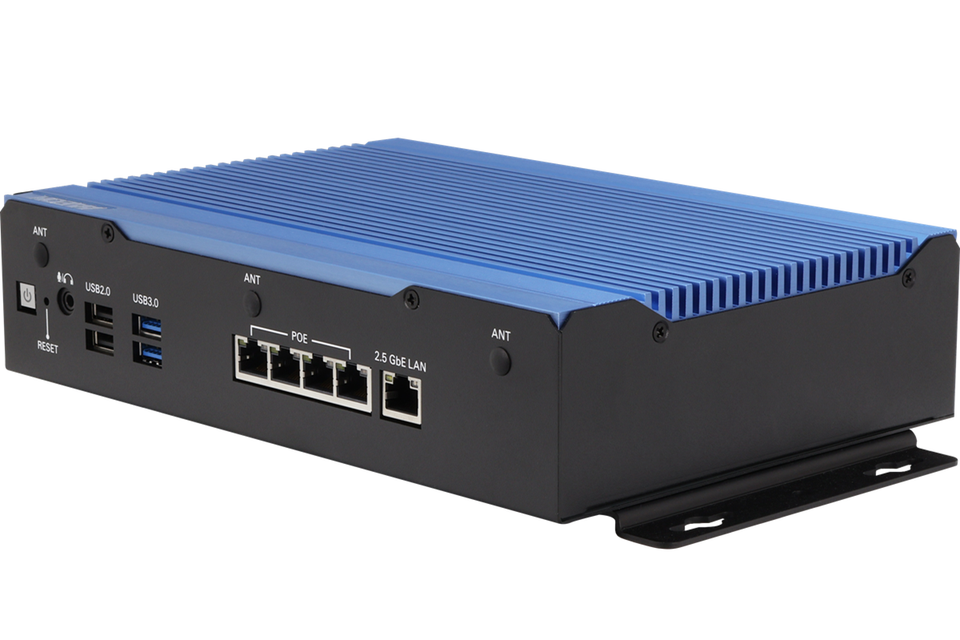

Aaeon BOXER-6649-RAP Fanless Compact Embedded Computer with Intel Core 13th i3/i5/i7 Processor - BOXER-6649-RAP-A1-1010
BOXER-6649-RAP is primarily targeted for use in the smart security, safety, and surveillance sectors, which is reflected in the system's I/O specifications. The BOXER-6649-RAP's four PoE LAN ports each offer 2.5GbE speed, and are joined by a fifth RJ-45 port, also offering 2.5GbE LAN. The system comes with two USB 3.2 Gen 2 (10 Gbps) ports, four USB 2.0, and both DB-9 and DB-15 ports for RS-232/422/485 and an 8-bit digital I/O, respectively.
For memory, the BOXER-6649-RAP can support up to 96 GB of DDR5 via two SODIMM slots, a substantial increase from the 64 GB provided by previous products from its Rugged Box PC series. AAEON has specified that the purpose of this is to help customers locally store large data models and run real-time AI inference without frame drops, particularly suitable for the product's target applications.
In terms of storage and expansion, the BOXER-6649-RAP is equipped with both an M.2 2280 M-Key for NVMe modules and an internal 2.5" SATA drive bay, allowing for both fast read/write speeds and stable, cost-effective long-term data storage. Meanwhile, the system can accommodate Wi-Fi/LTE, 5G, and cellular modules via M.2 E-Key, M.2 M-Key, and SIM card slots, respectively.
Despite its ventless chassis, the BOXER-6649-RAP is relatively compact at 242 mm x 167 mm x 56 mm, while also maintaining a -25°C to 60°C temperature range. The system can operate in industrial environments with fluctuating power supplies, with a 9 V to 36 V power input range via a 3-pin terminal block connector with protection circuit, while also receiving protection from damage during operation thanks to both shock and vibration resistance features.
Key Features
- 13th Generation Intel Core i7/i5/i3 Processors (28W)
- Intel Iris Xe Graphics
- Dual-Channel DDR5 SODIMM, up to 96GB
- Dual HDMI
- 2.5GbE LAN x 5 (IEEE 802.3 at PSE x 4)
- 9V-36V DC input with protection circuit
- Wide -25°C-60°C Operating Temperature
- Onboard TPM 2.0
