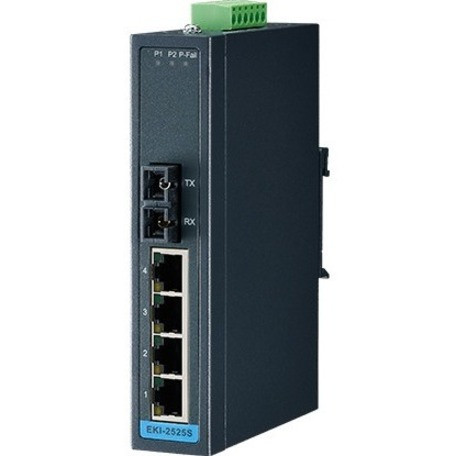

Advantech EKI-2525S Ethernet Switch - 4 Ports - 2 Layer Supported - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty UNMANAGED ENET SWITCH -10~60C
EKI-2525M/2525S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2525S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M provides one multi-mode fiber-optic ports, while the EKI-2525S provide one single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions.EKI-2525M/2525S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2525S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.
Features
- Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
- Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
- Provides 1 x 100 Mbps Multi-mode ST type fiber optic port (EKI-2525M-ST)
- Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525S)
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Provides redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail and Wall mount
Technical Specs
Management & Protocols
| Manageable | No |
Network & Communication
| Layer Supported | 2 |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
| RoHS |
Interfaces/Ports
| Modular | No |
| Uplink Port | No |
| Stack Port | No |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
Media & Performance
| Network Technology | 10/100Base-TX |
| 100Base-X | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
Physical Characteristics
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.7" |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | EKI-2525S-BE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-2525S |
| Product Name | EKI-2525S Ethernet Switch |
| Product Series | EKI-2000 |
| Brand Name | Advantech |
