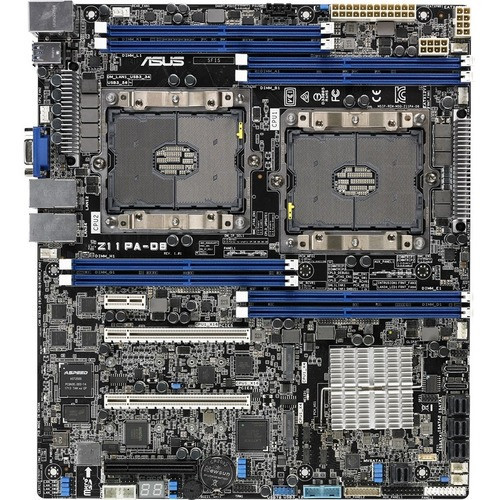

Asus Z11PA-8 Server Motherboard Intel Chipset -Socket P LGA-647 -SSI CEB Xeon Processor Supported -2 TB DDR4 SDRAM Maximum RAM -LRDIMM, RDIMM, DIMM -8 x Memory Slots Gigabit Ethernet INTEL XEON SKYLAKE SCALABLE DDR4
Powerful performance with Intel® Xeon® Scalable processor and ECC memory
Z11PA-8 is built on the Intel® Xeon® Scalable Platform to deliver higher peR-ore performance and four memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average systeM-evel performance compared to previouS-eneration processors. The Intel® Xeon® Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.
Increased performance or data redundancy with dual M.2 SSDs in RAID mode
Dual M.2 SATA SSDs enable top performance or data redundancy in RAID mode
In performancE-aximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. Z11PA-8 comes with an optional Virtual RAID on CPU (VROC) enabling connector to support NVMe SSDs with Intel® Volume Management Device technology. The NVMe SSDs are directly connected to the CPU, enabling latency reduction and increased bandwidth, while reducing power consumption by 15W compared to traditional hardware RAID cards.
High=peed storage interface support with dual OCuLink for NVMe
Dual OCuLink for efficient connections to NVMe devices
Z11PA-8 features dual onboard OCuLink to provide efficient port-O-ort connection with most OCuLink-Upported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 16 SATA 6Gb/s storage devices
Z11PA-8 comes with four mini=AS HD connectors that support up to 16 SATA ports each for high=peed 6Gb/s connectivity with external devices and cleaner cable routing.
Comprehensive IT infrastructure management software
Z11PA-8 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in=and and out=f=and management features for small and mid=ize businesses:
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-LICk software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9=KVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around=he-Lock remote monitoring and diagnostics -Even if the operating system is down or offline through a user-Riendly, web=ased graphical interface that works with all major browsers.
- Powered by Intel® Xeon® Scalable Platform features 8x DIMM slots supporting 3DS ECC RDIMMS or LRDIMMS up to DDR4-666 and 4x Gigabit LAN ports with a dedicated management LAN providing best=n-Lass memory capacity and data bandwidth.
- CEB Motherboard with ATX Mounting Holes for flexible mounting to fit in PC Chassis, Tower, or Rack systems with 12" x 10.5" compact size ideal for SMB Group, Print/File/Mail, and Entry Storage Servers.
- Dual onboard OCuLink provides efficient port-O-ort connection with most OCuLink-Upported NVMe devices, eliminating the need for PCIe transaction cards.
- Dual Integrated M.2 (NGFF) 22110 slots support additional OS storage and PCIe 3.0 x4 bandwidth for 5.3X faster boot speeds than 6 Gb/s SATA III.
- Four mini=AS HD support up to 16x SATA ports for high=peed 6Gb/s connectivity with external devices and cleaner cable routing.
| Gigabit Ethernet | Yes |
| Limited Warranty | 3 Year |
| Package Contents |
|
| Country of Origin | China |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2500 |
| Onboard Video | On=oard Video Chipset |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| VGA | Yes |
| Number of Network (RJ-5) Ports | 5 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Weight (Approximate) | 2.73 lb |
| Form Factor | SSI CEB |
| Width | 12" |
| Depth | 10.5" |
| RAID Levels | 1 |
| 0 | |
| 10 | |
| 5 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Intel VROC | Yes |
| Intel RSTe | Yes |
| Processor Supported | Xeon |
| Total Processor Supported | 2 |
| Processor Socket | Socket P LGA-647 |
| Chipset Manufacturer | Intel |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of Onboard USB 3.0 Ports | 1 |
| Number of M.2 Interfaces | 2 |
| Number of Mini=AS Interfaces | 4 |
| Product Type | Server Motherboard |
| Manufacturer Part Number | Z11PA-8 |
| Manufacturer Website Address | http://usa.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | Z11PA-8 |
| Product Name | Z11PA-8 Server Motherboard |
| Brand Name | Asus |
| Maximum Memory | 2 TB |
| 2 TB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Form Factor | RDIMM |
| LRDIMM | |
| DIMM | |
| Memory Speed Supported | 2666 MHz |
| 2666 MHz | |
| 2400 MHz | |
| 2400 MHz |
