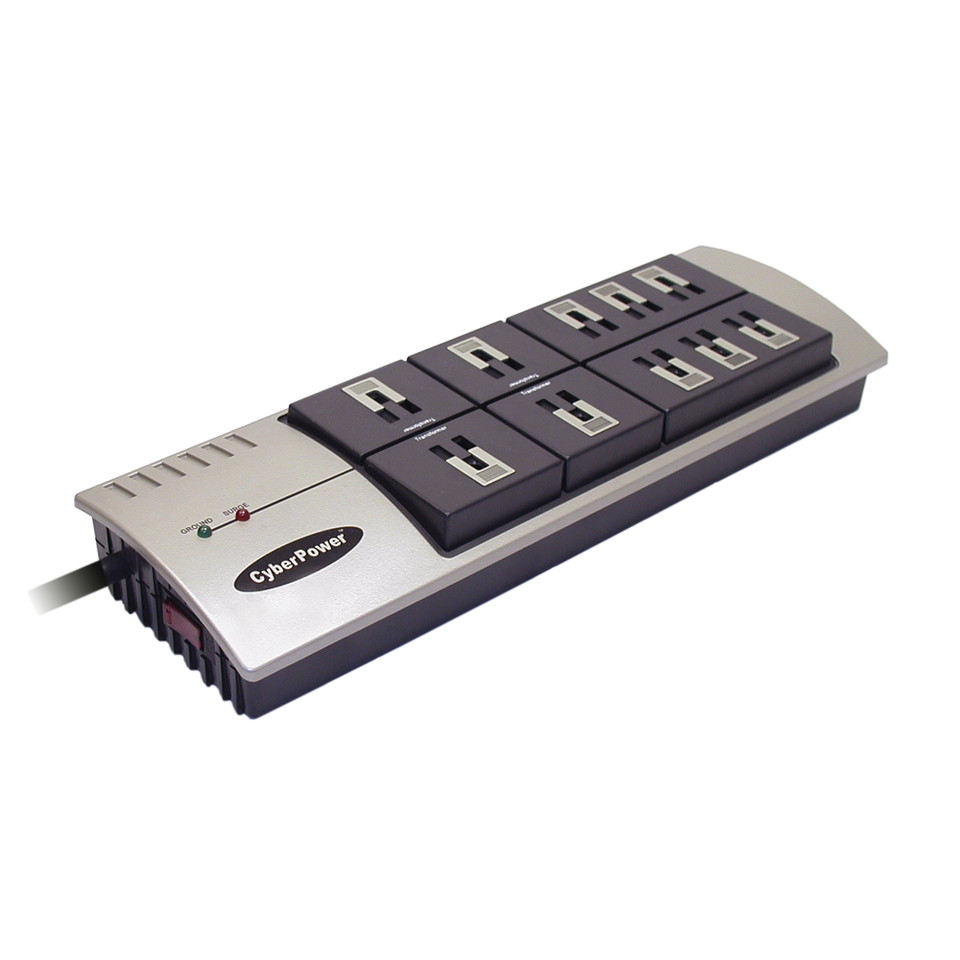

The CyberPower 1090 Essential Surge Protector provides computer/audio/video-grade surge suppression with 3000 joules of protection. The 1090 has 10 surge-protected outlets (6 standard and 4 widely spaced) with full data line protection.The RJ11 ports protect phone/fax/modem/DSL equipment and the RJ45 ports protect network connected equipment, such as computers, hubs, and routers. Two (2) gold-plated RG6 coaxial ports guard cable modems, cable TV lines, and DSS equipment. Four (4) widely spaced outlets allow for the connection of bulky DC transformers that are found on many popular electronic devices. Electro-magnetic and radio frequency interference (EMI/RFI) filtering blocks EMI/RFI from entering your equipment. Metal oxide varistor (MOV) technology ensures the protection of all connected electronics and the surge suppressor itself.CyberPower fully stands behind its products with a lifetime product warranty and Connected Equipment Guarantee of $200,000.
Technical specifications
| Input — Circuit Breaker | 15 A |
|---|---|
| Input — Cord Length | 6 ft (1.8 m) |
| Input Plug Type | NEMA 5-15P |
| Input — Plug Style | Right Angle – 45° Offset |
| Output — Outlet Type | 10 – NEMA 5-15R |
| Output — Outlets – Total | 10 |
| Output — Outlets – Widely Spaced | 4 |
| Output — USB Charge Port | No |
| Surge Protection & Filtering — Attenuation | 58 dB |
| Surge Protection & Filtering — EMI/RFI Filtration | 150 KHz 100 MHz |
| Surge Protection & Filtering — Maximum Surge Current | 150000 A |
| Surge Protection & Filtering — Maximum Surge Current H-G | 45000 A |
| Surge Protection & Filtering — Maximum Surge Current H-N | 60000 A |
| Surge Protection & Filtering — Maximum Surge Current N-G | 45000 A |
| Surge Protection & Filtering — Maximum Surge Voltage | 6000 V |
| Surge Protection & Filtering — Network Protection RJ45 | 1 in / 1 out |
| Surge Protection & Filtering — Phone Protection RJ11 | 1-In / 2-Out |
| Surge Protection & Filtering — Response Time | 1 Nanosecond |
| Surge Protection & Filtering — Surge Suppression (Joules) | 3000 J |
| Physical — Keyhole Mounting Slots | Yes |
| Certifications — Environmental | RoHS Compliant |
| Certifications — Safety | UL1449 UL497A |
| Warranty — CEG Amount | $200000 |
| Warranty — Connected Equipment Guarantee | Lifetime |
| Warranty — Product Warranty | Limited Lifetime Warranty |
Documentation
CyberPower 1090 product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
