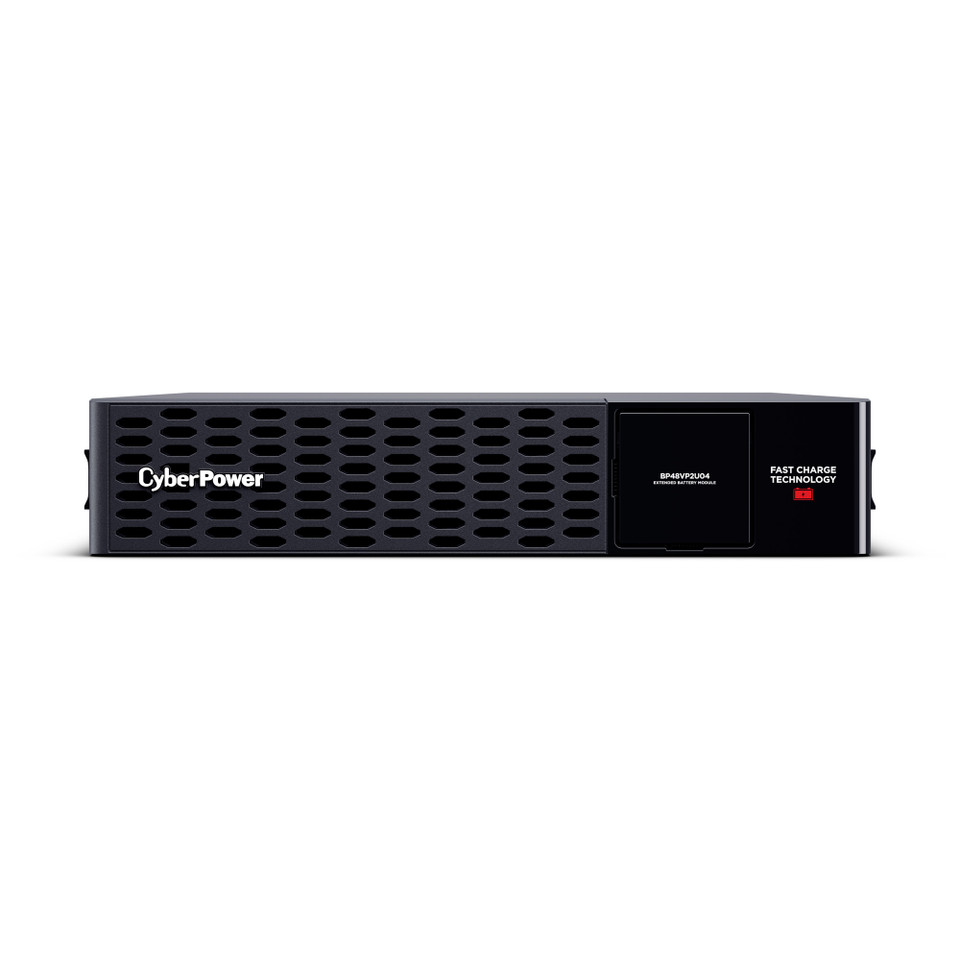

The CyberPower BP48VP2U04 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR5000RTXL2UC, PR5000RTXL4UC. This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple. With a three-year lifetime limited warranty, you can trust CyberPower’s commitment to the quality of the BP48VP2U04.
Technical specifications
| General — Amperage | 150 A |
|---|---|
| General — DC Voltage | 48 VDC |
| Battery Quantity | 16 |
| Battery Size | 12 V / 6 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Battery — Built-in Charger | Yes |
| Battery — Hot Swappable | Yes |
| Battery — Replacement Battery Cartridge | RB1260X8 |
| Battery — Replacement Battery Cartridge Quantity | 2 |
| Battery — Typical Recharge Time | 6 Hours |
| Battery — User Replaceable Battery | Yes |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Input Voltage Range | 100 VAC - 240 VAC |
| Input — Nominal Input Voltage | 240 VAC |
| Output — USB Charge Port | No |
| Physical — Color | Black |
| Physical — Material of Construction | Metal |
| Physical — Rack Height | 2U |
| Dimensions — Physical Dimensions - (WxHxD) (cm) | 43.43 x 8.64 x 62.99 (cm) |
| Dimensions — Physical Dimensions - (WxHxD) (in) | 17.1 x 3.4 x 24.8 (in) |
| Dimensions — Physical Dimensions - (WxHxD) (mm) | 434 x 86 x 630 (mm) |
| Dimensions — Physical Weight (kg) | 41.91 |
| Dimensions — Physical Weight (lb) | 92.4 |
| Dimensions - Shipping — Shipping - Weight (kg) | 48.98 |
| Dimensions - Shipping — Shipping - Weight (lb) | 108 |
Documentation
CyberPower BP48VP2U04 product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
