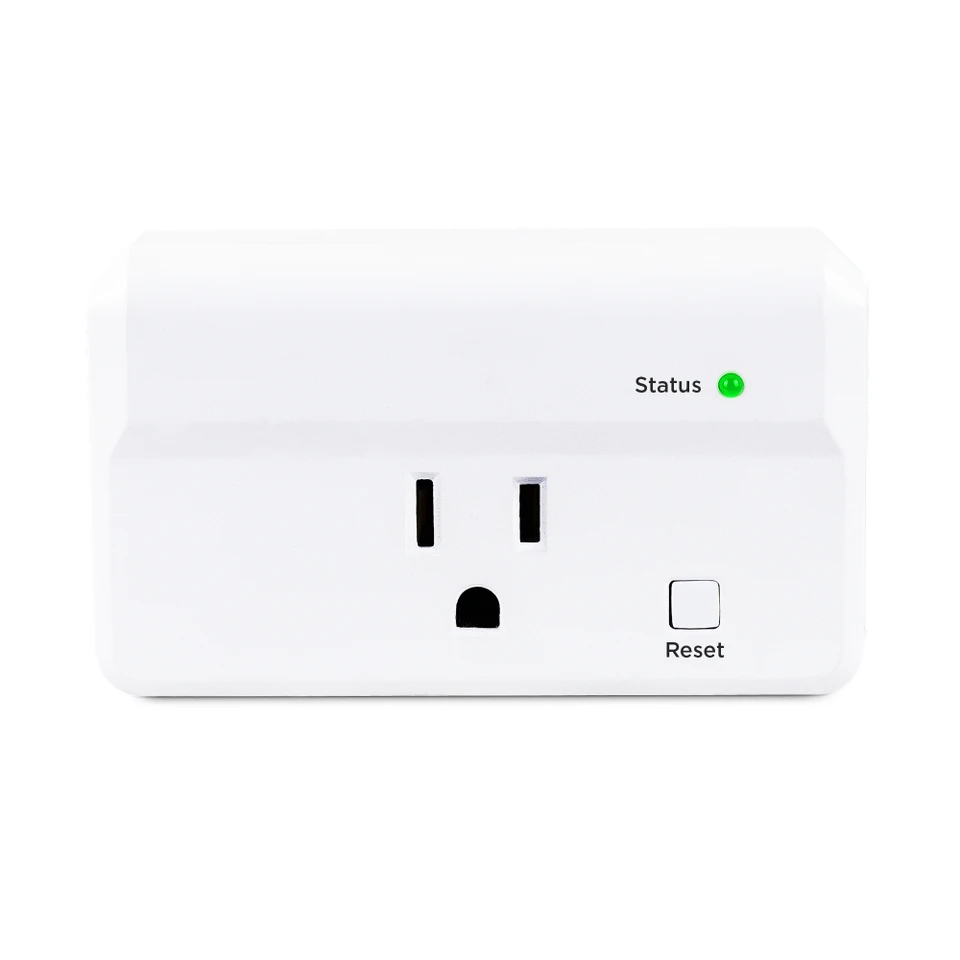

The CSP100R Wall-Tap Surge Protector guards common household appliances and electronics from damage caused by power spikes and surges with 1050 joules of surge protection and a functional power reset timer. The CSP100R programmable delay timer detects under-voltages and over-voltages. Once triggered, a programmed reset will occur within 15, 30, or 180 seconds, to keep clean power flowing to connected equipment without the need for a complete reset. This unit has a low profile, simple design that makes it easy to put in hard to reach places and a horizontal orientation.
Technical specifications
| Input — Circuit Breaker | None |
|---|---|
| Input — Cord Length | Walltap |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Input — Maximum Input Current | 15A |
| Output — Outlet Type | 1 – NEMA 5-15R |
| Output — Outlets – Total | 1 |
| Output — USB Charge Port | No |
| Smart Sensor — Shutdown Timer | Yes |
| Surge Protection & Filtering — Clamping Voltage | 900V (H-N, H-G, N-G) |
| Surge Protection & Filtering — Coax Protection RG6 | None |
| Surge Protection & Filtering — EMI/RFI Filtration | No |
| Surge Protection & Filtering — Maximum Surge Current | 24000 A |
| Surge Protection & Filtering — Maximum Surge Current H-G | 8000 A |
| Surge Protection & Filtering — Maximum Surge Current H-N | 8000 A |
| Surge Protection & Filtering — Maximum Surge Current N-G | 8000 A |
| Surge Protection & Filtering — Maximum Surge Voltage | 6000 V |
| Surge Protection & Filtering — Response Time | 1 Nanosecond |
| Surge Protection & Filtering — Surge Suppression (Joules) | 1050 J |
| Physical — Color | White |
| Physical — Form Factors Supported | Direct Plug |
| Physical — Material of Construction | Plastic |
| Dimensions — Physical Dimensions – (WxHxD) (cm) | 13.0 x 6.38 x 3.63 (cm) |
| Dimensions — Physical Dimensions – (WxHxD) (in) | 5.12 x 2.51 x 1.43 (in) |
| Dimensions — Physical Dimensions – (WxHxD) (mm) | 130 x 64 x 36 (mm) |
| Dimensions — Physical Weight (kg) | 0.09 |
Documentation
CyberPower CSP100R product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
