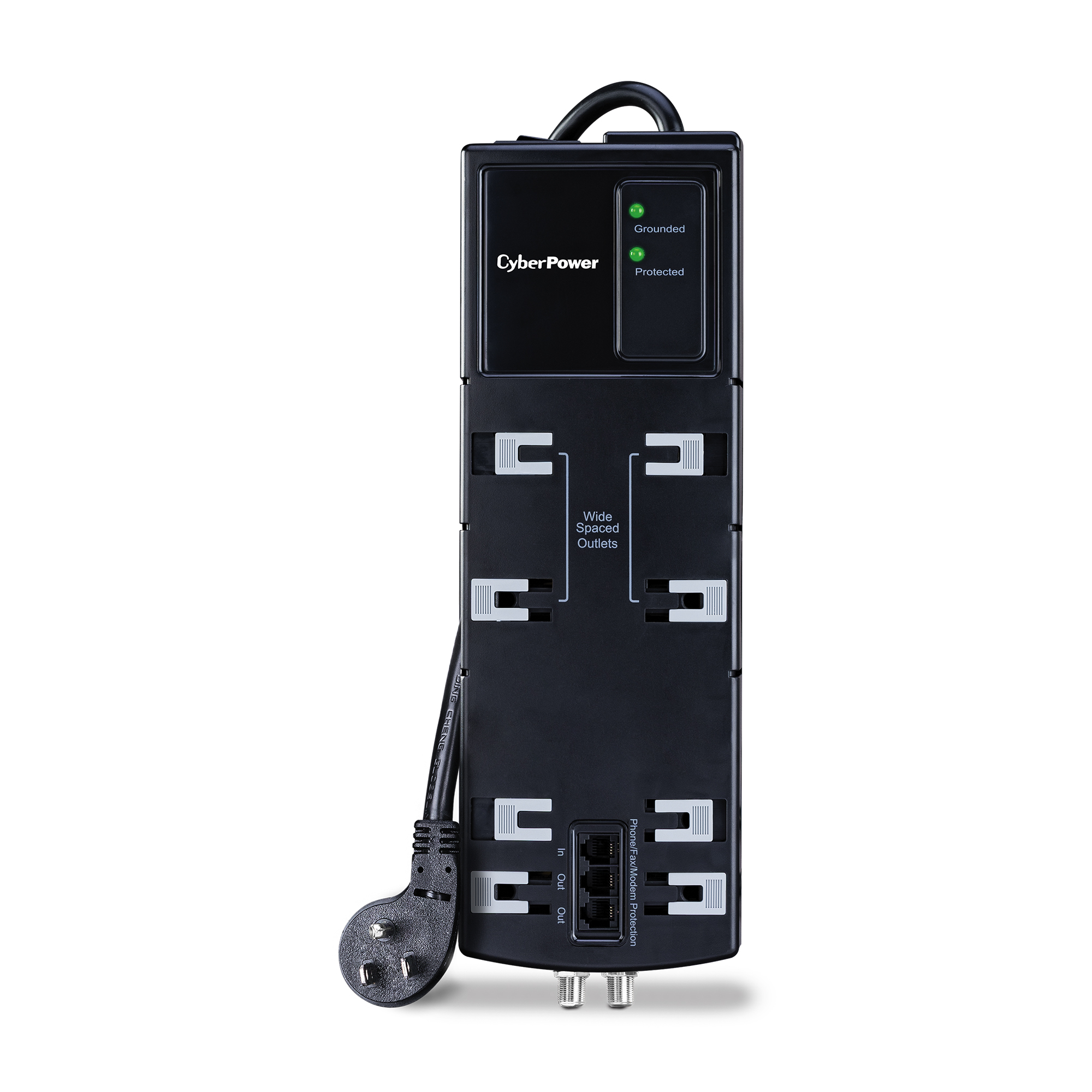

The Home Theater Surge Protector HT806TC provides 3000 joules of surge protection and 8 outlets to safeguard your home theater equipment from damage caused by electrical surges. Data line protection occurs with RJ11 ports for telecommunication devices such as phones, faxes, modems, and DSL lines. RG6 coaxial connectors protect cable/satellite TV receivers and broadband modems.
Technical specifications
| Input — Circuit Breaker | 15 A |
|---|---|
| Input — Cord Length | 6 ft (1.8 m) |
| Input Plug Type | NEMA 5-15P |
| Input — Maximum Input Current | 15A |
| Output — Outlet Type | 8 – NEMA 5-15R |
| Output — Outlets – Total | 8 |
| Output — Outlets – Widely Spaced | 4 |
| Output — USB Charge Port | No |
| Surge Protection & Filtering — Attenuation | 30 dB |
| Surge Protection & Filtering — Clamping Voltage | 500V (H-N, H-G, N-G) |
| Surge Protection & Filtering — Coax Protection RG6 | 1 in 1 out |
| Surge Protection & Filtering — EMI/RFI Filtration | 150 KHz 100 MHz Yes |
| Surge Protection & Filtering — Maximum Surge Current | 150000 A |
| Surge Protection & Filtering — Maximum Surge Current H-G | 30000 A |
| Surge Protection & Filtering — Maximum Surge Current H-N | 90000 A |
| Surge Protection & Filtering — Maximum Surge Current N-G | 30000 A |
| Surge Protection & Filtering — Maximum Surge Voltage | 6000 V |
| Surge Protection & Filtering — Phone Protection RJ11 | 1-In / 2-Out |
| Surge Protection & Filtering — Response Time | 1 Nanosecond |
| Surge Protection & Filtering — Surge Suppression (Joules) | 3000 J |
| Physical — Color | Black |
| Physical — Cord Management | Yes |
| Physical — Form Factor | Strip |
| Physical — Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |
| Physical — Keyhole Mounting Slots | Yes |
| Physical — Material of Construction | Plastic |
Documentation
CyberPower HT806TC product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
