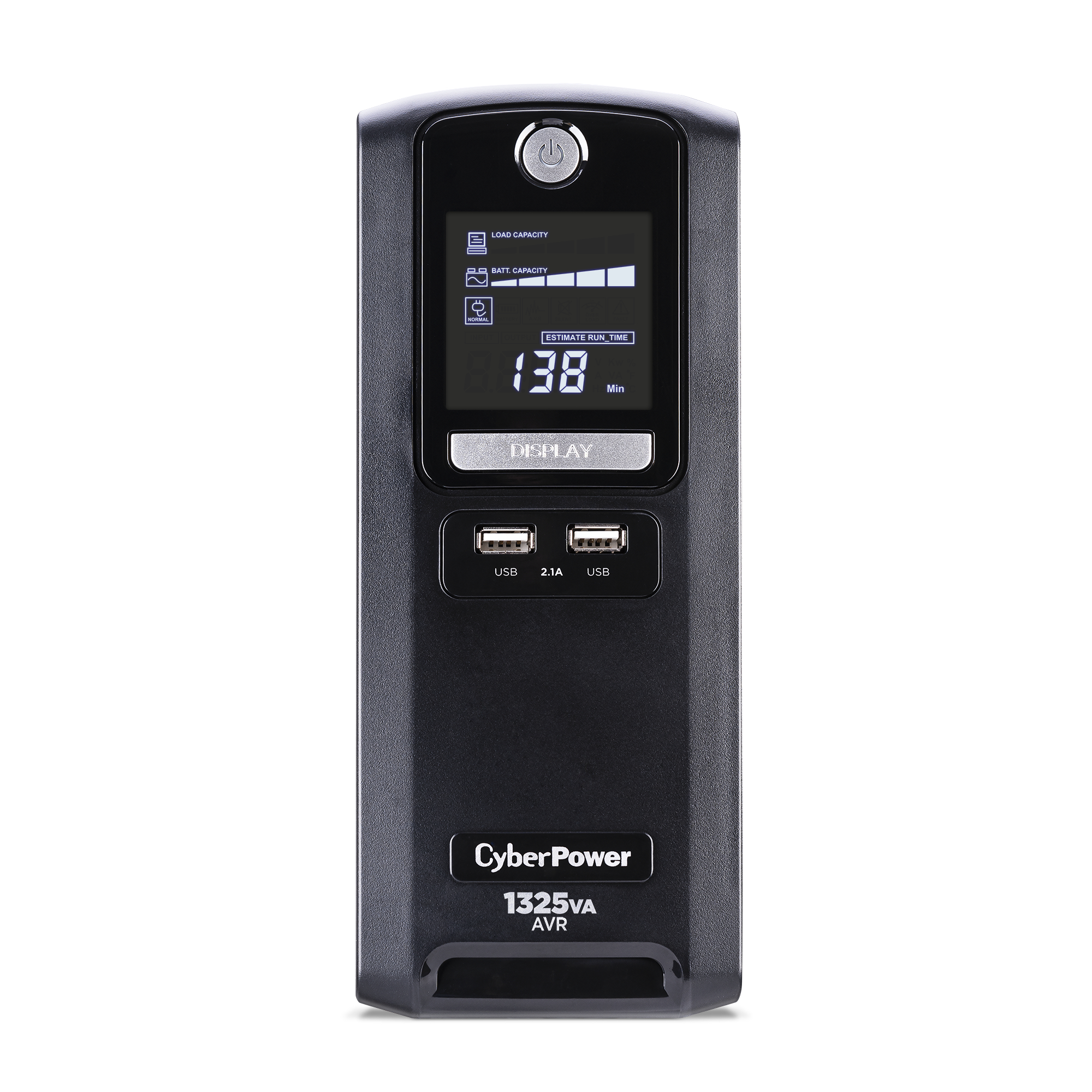

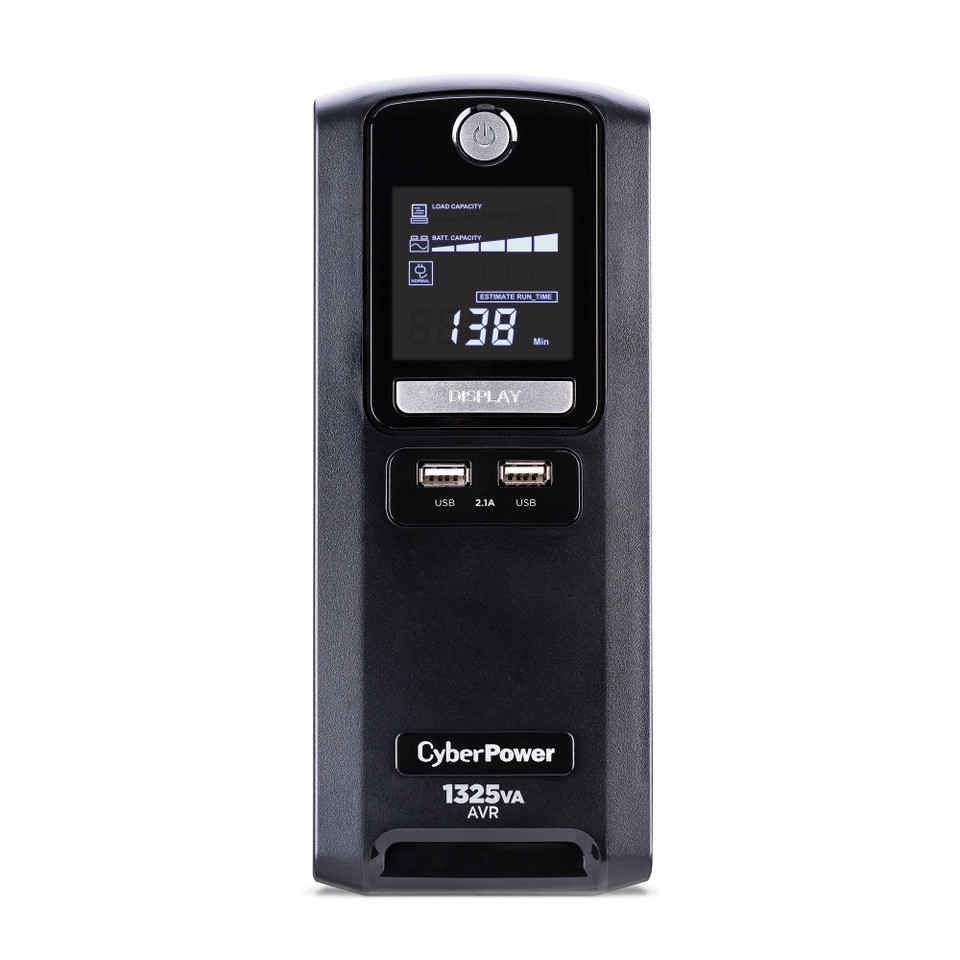

A mini-tower UPS with line interactive topology, the CyberPower LX1325GU-FC provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The LX1325GU-FC uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure. The LX1325GU-FC comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Technical specifications
| General — Energy Saving | GreenPower UPS™ Bypass Technology |
|---|---|
| General — Energy Star Certified | Yes |
| General — UPS Topology | Line Interactive |
| Battery Quantity | 2 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Battery — Replacement Battery Cartridge | RB1270X2C |
| Battery — Replacement Battery Cartridge Quantity | 1 |
| Battery — Runtime at Full Load | 2 min |
| Battery — Runtime at Half Load | 10 min |
| Battery — Typical Recharge Time | 8 Hours |
| Battery — User Replaceable Battery | Yes |
| Input — Circuit Breaker | 15 A |
| Input — Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input — Nominal Input Voltage | 120 VAC |
| Input — Plug Style | Right Angle – 45° Offset |
| Output — Automatic Voltage Regulation | Single Boost |
| Output — On Battery Frequency | 60 Hz ± 1% |
| Output — On Battery Voltage | 120 VAC ± 5% |
| Output — On Battery Waveform | Simulated Sine Wave |
| Output — Outlet Type | 10 – NEMA 5-15R |
| Output — Outlets – Battery & Surge Protected | 5 |
| Output — Outlets – Surge-Only Protected | 5 |
| Output — Outlets – Total | 10 |
Documentation
CyberPower LX1325GU product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
