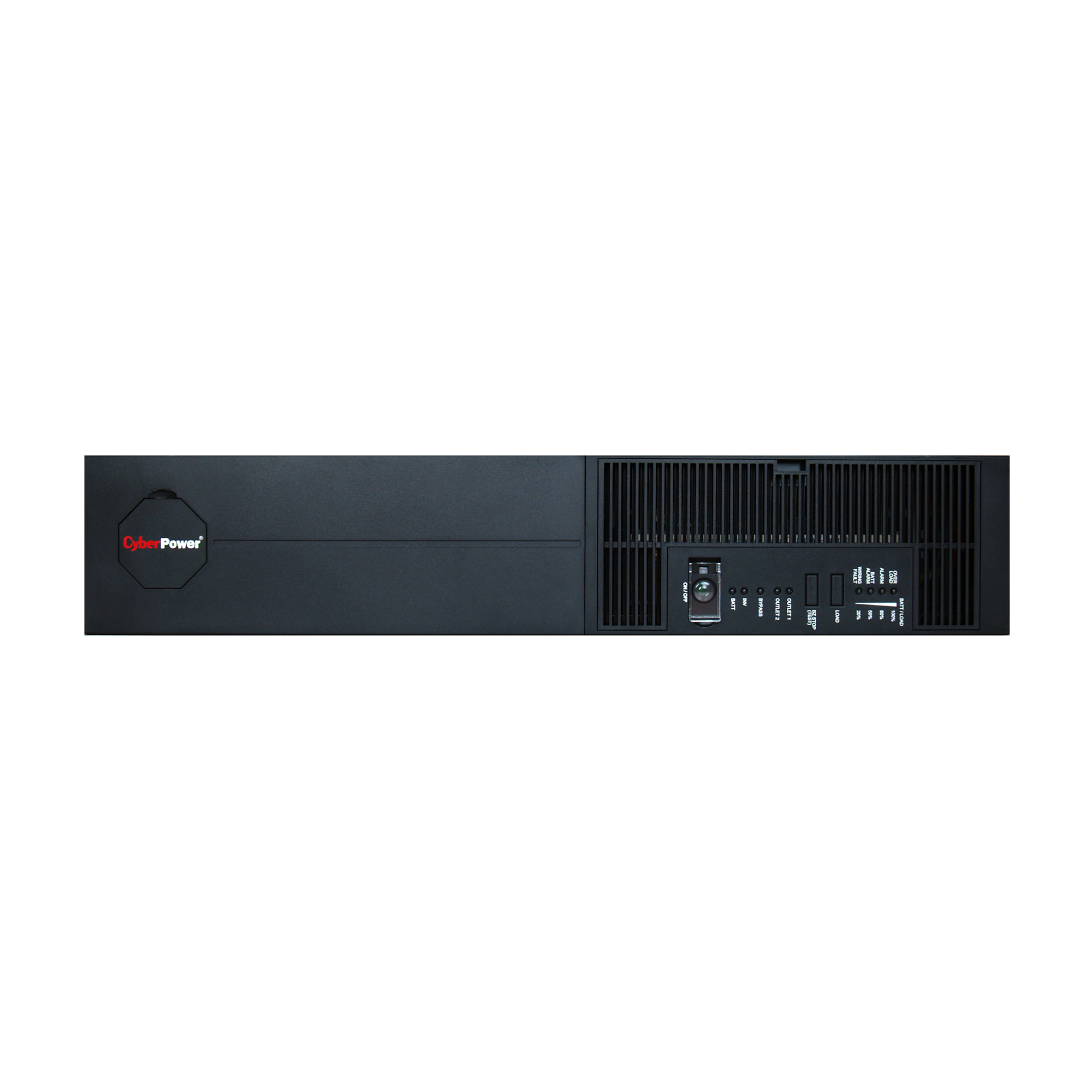

A rack/tower UPS with double-conversion topology, the CyberPower Smart App Online OL2000RMXL2U provides sine wave output to mission-critical applications and equipment requiring seamless power protection. This model comes with an LCD front panel, audible alarms, and a resettable circuit breaker. The OL2000RMXL2U offers generator compatibility and delivers clean AC power with zero transfer time. This model can use up to four ABP72VRM2U Extended Battery Modules for expanded runtime and faster restoration of full backup power. The OL2000RMXL2U comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.
Technical specifications
| General — UPS Topology | Online Double Conversion |
|---|---|
| Battery Quantity | 8 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Battery — Extended Runtimes Available | Yes, with optional ABP72VRM2U Battery Pack |
| Battery — Replacement Battery Cartridge | RB1270X6PS |
| Battery — Replacement Battery Cartridge Quantity | 1 |
| Battery — Runtime at Full Load | 8 min |
| Battery — Runtime at Half Load | 19 min |
| Battery — Typical Recharge Time | 3 Hours (0% to 90% charged) |
| Battery — User Replaceable Battery | Yes |
| Input — Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type | NEMA 5-20P |
| Input — Phase | Single Phase |
| Input — Plug Style | Straight |
| Output — Crest Factor | 3:1 |
| Output — On Battery Frequency | 50/60 Hz ± 0.5% |
| Output — On Battery Voltage | 110/120/127 VAC ± 3% |
| Output — On Battery Waveform | Sine Wave |
| Output — Outlet Type | 4 – NEMA 5-20R 1 – NEMA L5-20R |
| Output — Outlets – Battery & Surge Protected | 5 |
| Output — Outlets – Total | 5 |
| Output — Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Output — Typical Transfer Time | 0 ms |
| Output — USB Charge Port | No |
Documentation
CyberPower OL2000RMXL2U product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
