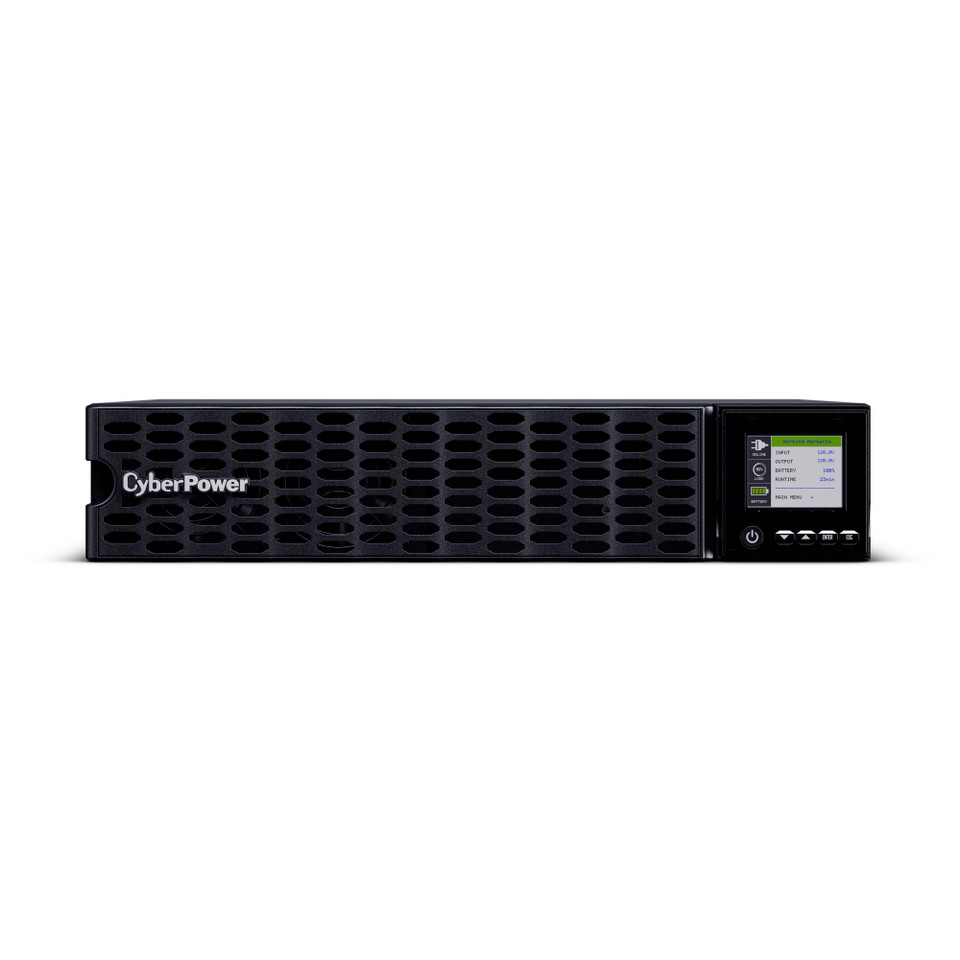

The OL2K2RTHDTAA features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL2K2RTHDTAA ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation. The optional BP48VL2U01TAA Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it’s backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
Technical specifications
| General — Energy Saving | ECO Mode Efficiency 96% |
|---|---|
| General — Energy Star Certified | Yes |
| General — UPS Topology | Online Double Conversion |
| Battery Equalization Technology | Yes |
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Battery — Extended Battery Module | BP48VL2U01TAA |
| Battery — Hot Swappable | Yes |
| Battery — Replacement Battery Cartridge | RB1290X4M |
| Battery — Replacement Battery Cartridge Quantity | 1 |
| Battery — Runtime at Full Load | 6 min |
| Battery — Runtime at Half Load | 16 min |
| Battery — Smart Battery Management (SBM) Mode | Yes |
| Battery — Typical Recharge Time | 4 Hours (0% to 90% charged) |
| Battery — User Replaceable Battery | Yes |
| Input — Backfeed Protection | No |
| Input — Circuit Breaker | 20 A |
| Input — Cold Start | Yes |
| Input — Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 40 Hz - 70 Hz |
| Input Plug Type | NEMA 5-20P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC - 69 VAC for 0–60% Load 70 VAC - 79 VAC for 0–70% Load 80 VAC - 89 VAC for 0–80% Load 90 – 95 VAC for 0–90% load |
| Input — Nominal Input Voltage | 100 - 125 VAC |
| Output — Bypass | Internal Bypass (Automatic and Manual) |
Documentation
CyberPower OL2K2RTHDTAA product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
