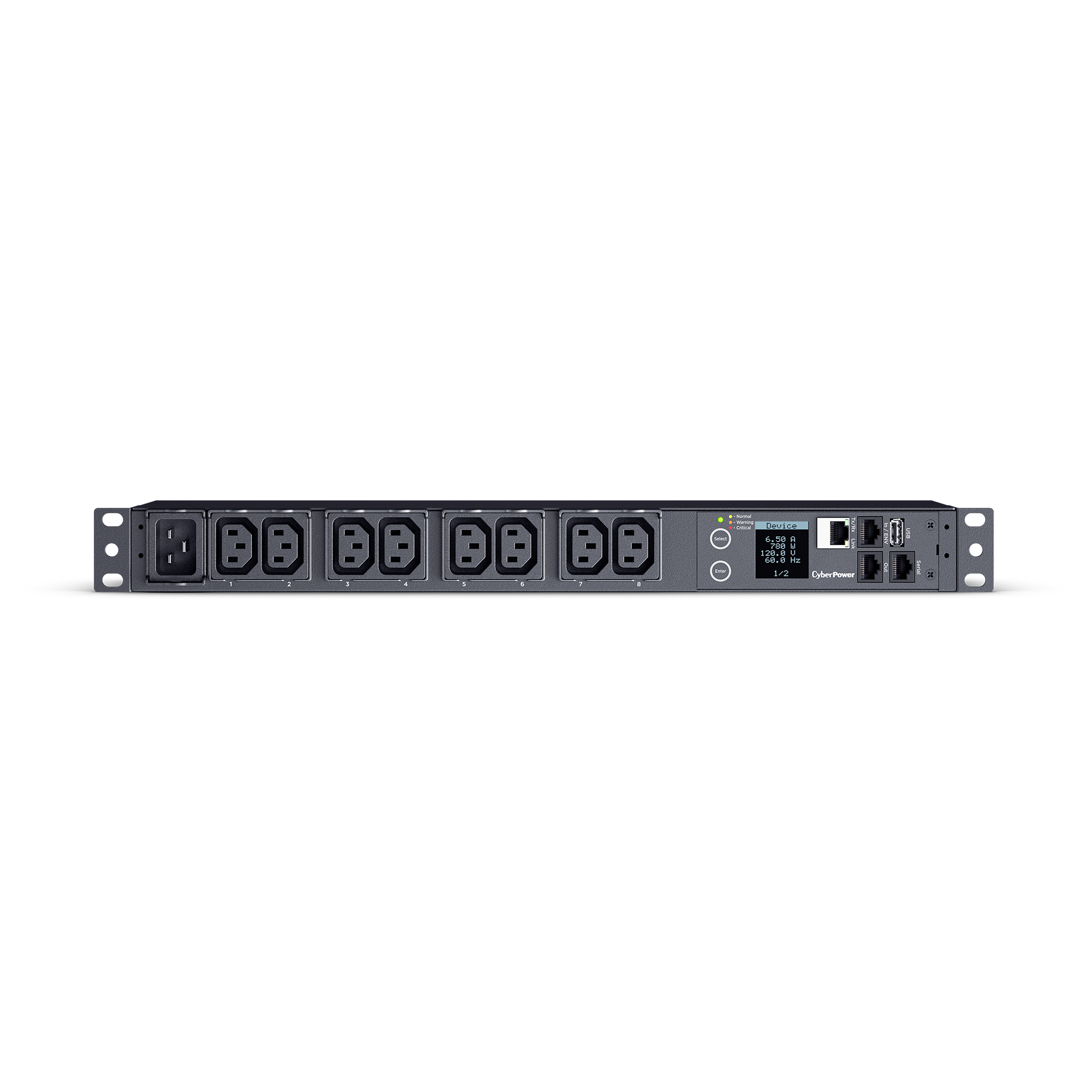

Streamline capacity planning with the CyberPower PDU71006 metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides real time outlet-level power monitoring over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD. The PDU71006 supports inputs between 200-240V and includes 8 IEC-320 C13 outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU71006 is protected by a three-year limited warranty.
Technical specifications
| Input — Cord Length | 12 ft (3.7 m) |
|---|---|
| Input — Derated Input Current | 16 A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA L6-20P |
| Input — Maximum Input Current | 20A |
| Input — Nominal Input Voltage | 200 – 240 VAC |
| Input — Phase | Single Phase |
| Input — Power Cord Length | 12 ft (4 m) |
| Output — Nominal Output Voltage | 200 – 240 VAC |
| Output — Outlet Type | 8 – IEC-320 C13 |
| Output — Outlets – Total | 8 |
| Output — USB Charge Port | No |
| Management & Communications — Environmental Sensor | Optional, via RJ45 |
| Management & Communications — Hardware Connection Port | Ethernet (RJ45) Serial (RJ45) |
| Management & Communications — LCD | Multifunction LCD |
| Management & Communications — Monitoring Level | Input Per Outlet |
| Management & Communications — Protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Management & Communications — Software (Free Download) | PowerPanel® Business |
| Management & Communications — Upgradeable firmware | Yes |
| Physical — Color | Black |
| Physical — Cord Retention Tray/Cord Organizers | Yes |
| Physical — Rack Height | 1U |
| Dimensions — Physical Dimensions – (WxHxD) (cm) | 11.2 x 4.45 x 43.31 (cm) |
| Dimensions — Physical Dimensions – (WxHxD) (in) | 4.41 x 1.75 x 17.05 (in) |
| Dimensions — Physical Dimensions – (WxHxD) (mm) | 112 x 44 x 433 (mm) |
| Dimensions — Physical Weight (kg) | 2.7 |
Documentation
CyberPower PDU71006 product page, specifications and downloads — published by CyberPower Systems.
Support and procurement
Supplied with the manufacturer's standard warranty. HSSL Technologies can quote this unit on its own or as part of a wider power protection and rack build, including replacement battery packs, management cards and installation.
Specifications are provided by CyberPower Systems and are subject to change. Images may not be exact — please confirm the exact configuration on your quotation.
