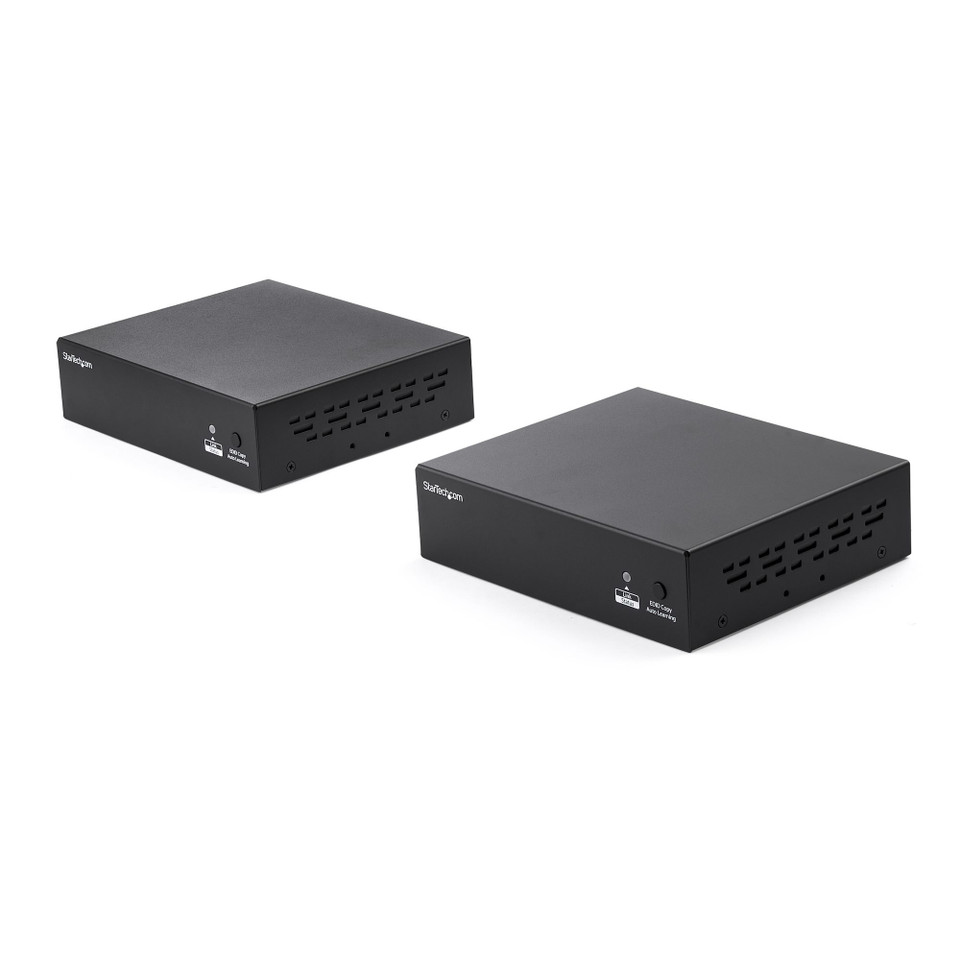

StarTech.com Dual HDMI over CAT6 Extender - 1080p. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, Audio input: 1 x Toslink, Audio output: 1 x Toslink. AC input voltage: 100 - 240 V, Operating voltage: 12 V, Output current: 1.5 A. Weight: 200 g, Receiver dimensions (WxDxH): 130 x 158 x 43 mm, Receiver weight: 200 g. Package width: 224 mm, Package depth: 475 mm, Package height: 67 mm
Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cable
This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.
Dual source support
Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.
Bi-directional control
With bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.
Simplified setup
The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.
The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | ST222HDBT |
| HSSL part number | UK-STT-ST222HDBT |
| UPC / GTIN | 0065030878470 |
| Product type | AV Extenders |
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 90 m |
| Chipset | VS2310TX, VS2310RX |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| LED indicators | Link, Status |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| Certification | CE, FCC, TAA |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| Audio input | 1 x Toslink |
| Audio output | 1 x Toslink |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Output current | 1.5 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 200 g |
| Receiver dimensions (WxDxH) | 130 x 158 x 43 mm |
| Receiver weight | 200 g |
| Transmitter dimensions (WxDxH) | 130 x 158 x 43 mm |
| Transmitter weight | 200 g |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-STT-ST222HDBT.
