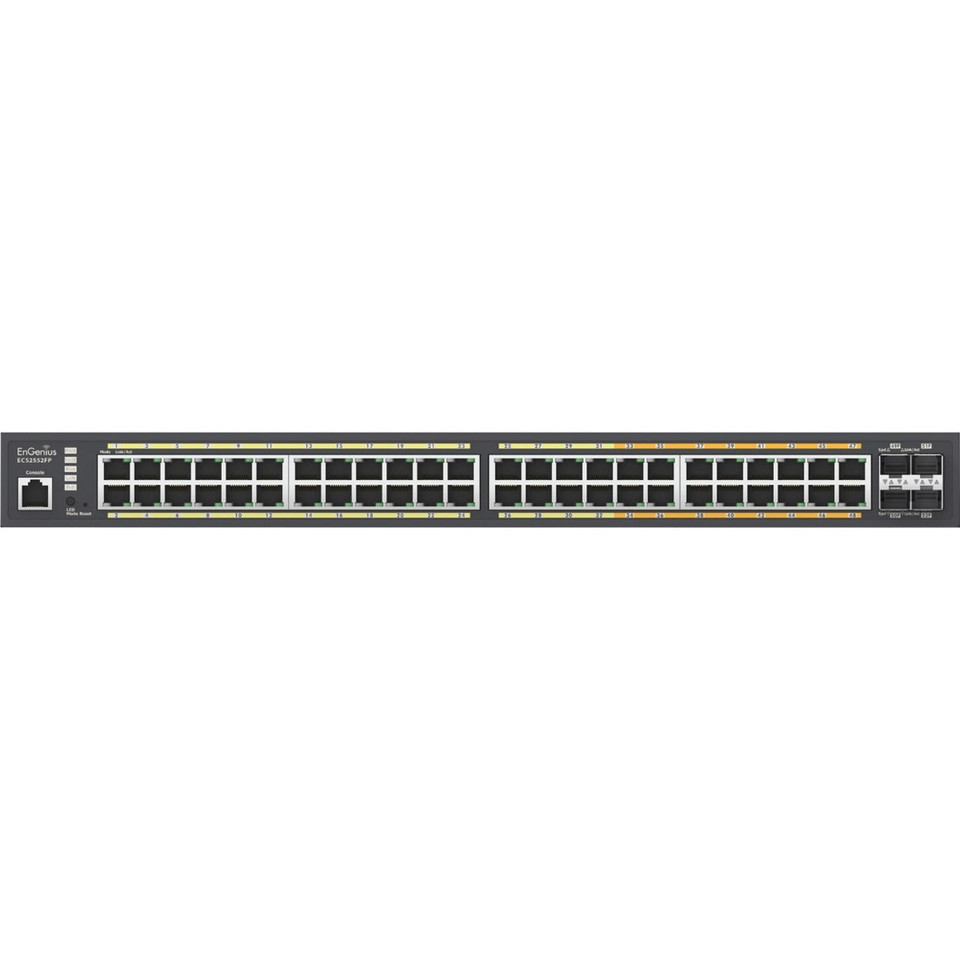

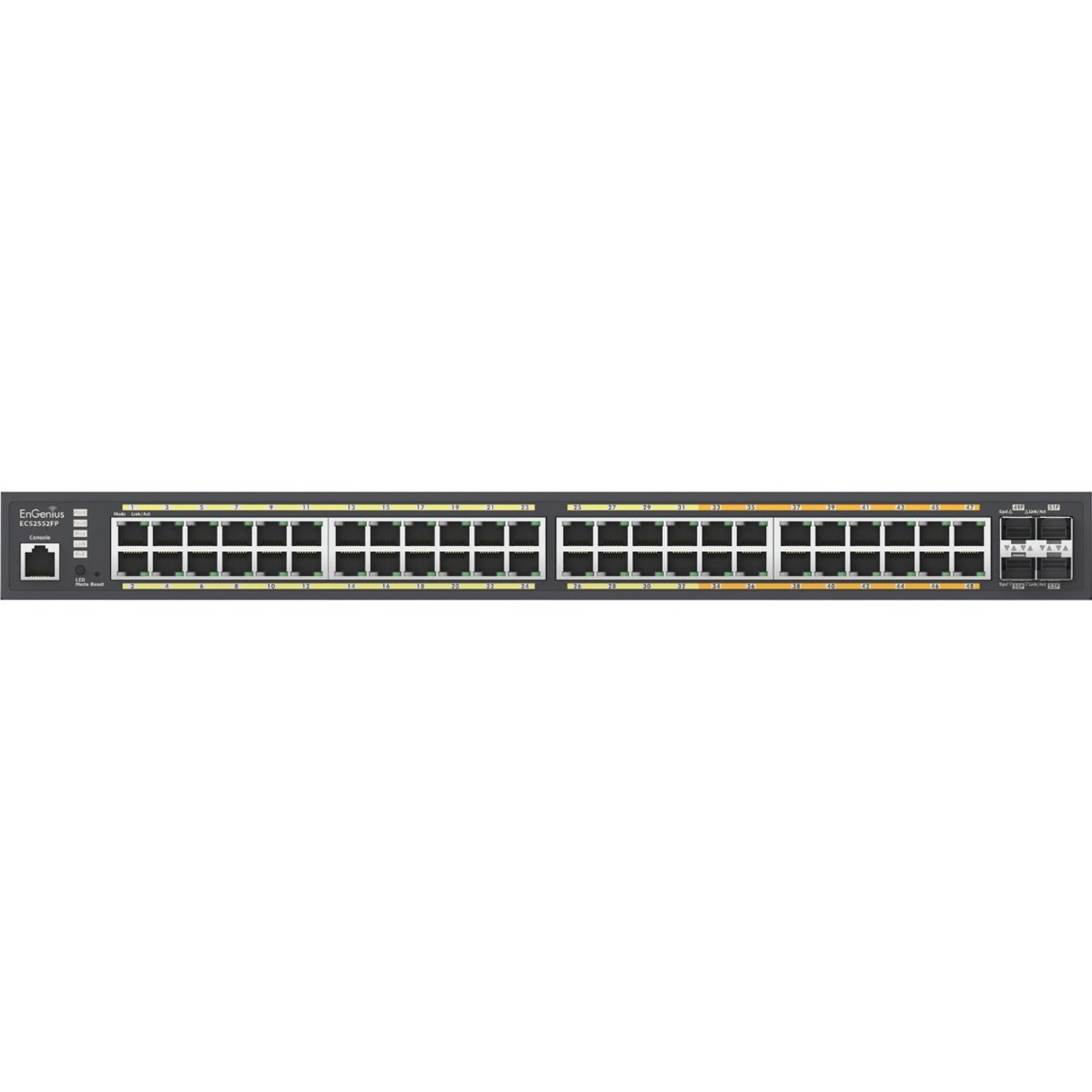

EnGenius Cloud Managed Switch 32-port GbE + 16-port Multi-GbE PoE.af/at(+) 740W 4xSFP L2 19i. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
EnGenius Cloud Managed Layer 2+ Multi-Gigabit 2.5Gb Switch, ECS2552FP, provides SMBs with an easy-to-use and cost-effective network solution. With its 32-Port Gigabit PoE+ and 16-Port 2.5G PoE+ as well as 4-Port 10G SFP+ uplink with 740W budget, it ensures high-speed data transfer for bandwidth-intensive applications. With zero-touch provisioning and centralized cloud management, it simplifies network management and saves time. .
Documents
Specifications
| General | |
|---|---|
| Brand | EnGenius |
| Manufacturer part number | ECS2552FP |
| HSSL part number | UK-ENG-ECS2552FP |
| UPC / GTIN | 0655216010468 |
| Product type | Network Switches |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Installed SFP+ modules quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 224 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 310 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.87 kg |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ENG-ECS2552FP.
Additional information
EnGenius ECS2552FP Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - 740 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - 2 Year Limited WarrantyWe can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be ship to international destinations.
