EnGenius Switch 24-port GbE PoE.af/at(+) 410W 4xSFP L2 19i. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

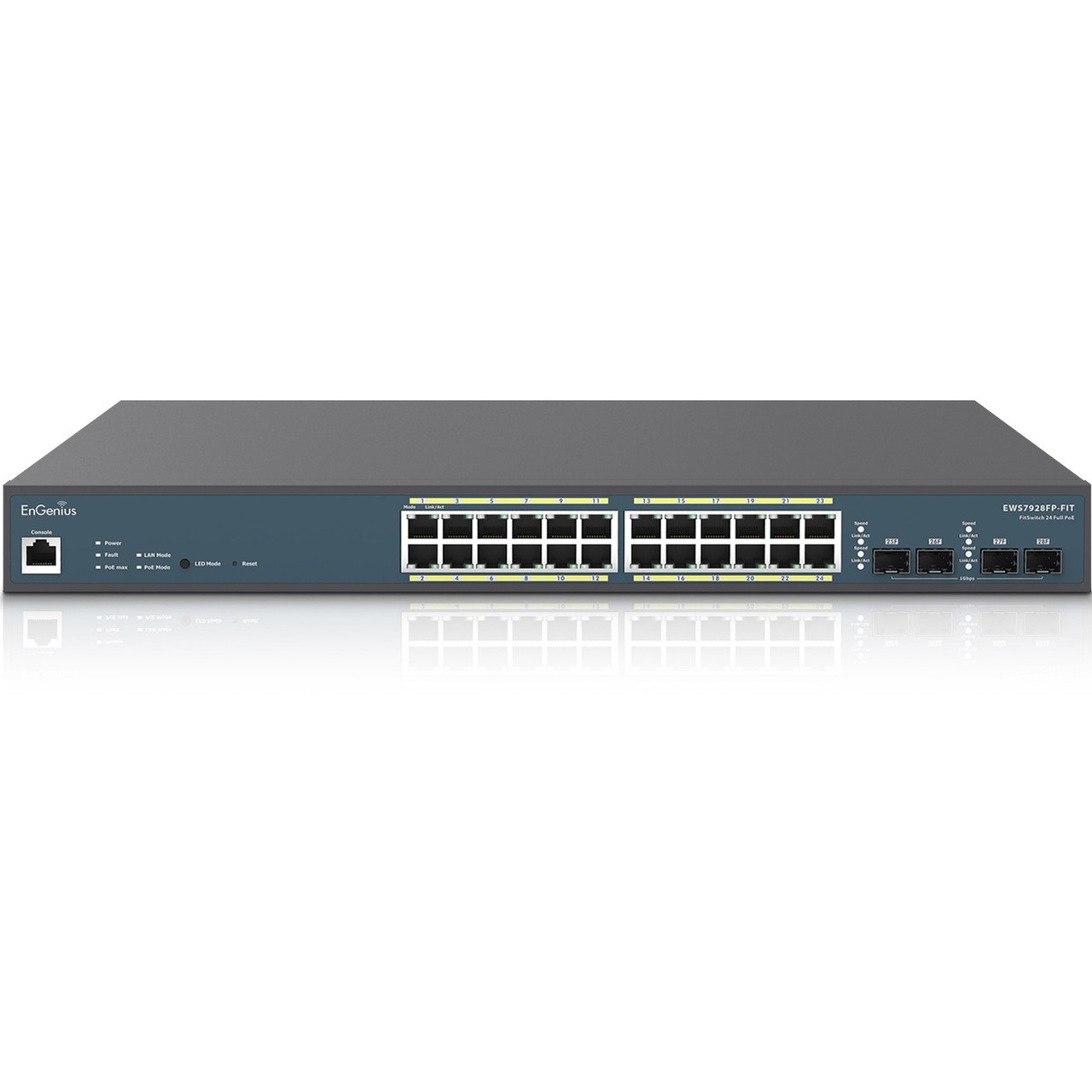

EnGenius Fit 24-Port Gigabit 410W PoE+ Switch with 4 SFP Ports
EnGenius Fit Layer 2+ Switch, EWS7928FP-FIT, is a high-performance switch that supports zero-touch provisioning and centralized cloud management. Its robust security features ensure protection against network threats, while its Voice-VLAN feature is optimized for quality voice and video traffic.
Documents
Specifications
| General | |
|---|---|
| Brand | EnGenius |
| Manufacturer part number | EWS7928FP-FIT |
| HSSL part number | UK-ENG-EWS7928FP-FIT |
| UPC / GTIN | 0655216011021 |
| Product type | Network Switches |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | No |
| VLAN support | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP snooping, DHCP relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNTP |
| Design | |
| Product colour | Grey |
| Power | |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 410 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ENG-EWS7928FP-FIT.
