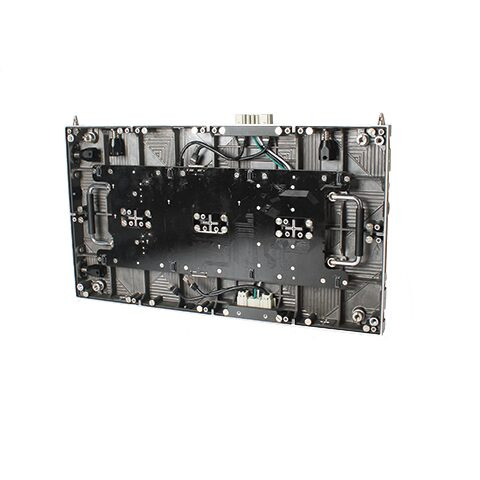

FE 2.5mm dvLED Wall
The NEC FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today's demanding applications. With 7 different fine pixel pitches (0.95mm, 1.2mm, 1.5mm, 1.9mm, 2.5mm, 3.1mm and 3.8mm) the optimum display resolution can be achieved regardless of viewing distance. The LED-FA025i2 is a 2.53mm pixel pitch module designed for vibrant and colorful content visualization delivering unmatched brightness among fine-pitch DvLEDs. Control rooms, corporate signage, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the NEC FA series is designed to be integrated. The FA Series is engineered with high quality Multi-Color LEDs that deliver industry-leading imaging and reliability with no external cables required for installation. Built-in data and power redundancy with a front serviceable design helps to minimize downtime and deliver unmatched reliability. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
- Designed with Multi-Color LEDs and a refresh rate of >= 3840 Hz for excellent image quality
- HDR capable when used with controllers that output HDR
- Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
- Built in data and power redundancy ensuring the display remains operational in the event of a single controller of power supply failure
- Front serviceable modules allowing for installation in difficult to access areas
- Pixel cards are hot-swappable and can be replaced without turning the display off
- Shallow depth and reduced weight allow for greater installation flexibility and also meet ADA requirements
Display
| Panel Technology | Direct View LED | Aspect Ratio | 16:9 |
| Native Resolution | 240x135 | Module Resolution | 240 x 135 |
| Pixel Configuration | 3-1 SMD (Black) | Pixel Pitch | 2.53 mm |
| Brightness (typical) | 1200 cd/m2 | Brightness (maximum) | 1320 cd/m2 |
| Contrast Ratio (typical) | 7000:1 | Viewing Angle (typical) | 80/80 horizontal / 70/70 vertical |
| Refresh Rate | Up to 3840 Hz | Active Screen Area | 23.9 x 13.5 in. / 608 x 342 mm |
| Orientation | Landscape | Dimming Capability | 256 levels |
| Color Processing | Up to 16 bit | Displayable Colors | 281 Trillion |
| Color Temperature (Max) (°K) | 3000 | Color Temperature (Typical) (°K) | 6500 |
| Color Temperature (Min) (°K) | 9500 | Gamma (Max) | 4.0 |
| Gamma (Typical) | 2.8 | Gamma (Min) | 1.0 |
| Lifetime | 100,000 hours |
