Supports 5G network infrastructure
Up to 32 x PCIe low profile GPU slots
Up to 8 x PCIe low profile high speed LAN connectivity slots
2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
Supports Intel® Optane™ DC Persistent Memory
2 x GbE LAN ports (Intel® I350-AM2)
4 x 2.5" NVMe, 6 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
1 x low profile PCIe Gen3 expansion slots in front side
1 x OCP 2.0 Gen3 x8 mezzanine slot
Aspeed® AST2500 remote management controller
4 x 80 PLUS Platinum 2200W redundant PSU

2nd Generation Intel^® Xeon^® Scalable Family Ready

GIGABYTE’s servers are fully ready to support the second generation of Intel^® Xeon^® Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:

• Intel^® Optane™ Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology
• Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
• Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
• Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
• Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities

Intel^® Xeon^® Scalable Family Processors

GIGABYTE’s Intel^® Xeon^® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.
* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information

Advanced features built into the silicon include:

• Intel^® QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).
• Intel^® AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.
• Intel^® VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And Gigabyte Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.
• Intel^® Omni-Path: Selected Gigabyte servers support CPU SKUs with integrated Intel Omni-Path Fabric connection
•

Compute

Up to 28 cores / 56 threads per socket

Up to 38.5 MB L3 cache (non-inclusive)

Up to 3x UPI socket interconnects @ 10.4 GT/s

CPU TDP 70W – 205W

Memory

6 channels, 2 DIMMs per channel

Up to 12 DIMMS per socket

Up to 2933MHz max memory speed

Intel Optane Persistent Memory ready

I/O

48 PCIe 3.0 lanes per socket

Intel^® Optane™ Persistent Memory Ready

GIGABYTE’s second generation Intel^® Xeon^® Scalable family servers come ready to support Intel^® Optane™ Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.

Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).

Note: the maximum number of Intel^® Optane™ PMem that can be installed per system and the DIMM slot positions that can be used for PMem will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.

Intel^® VROC Enabled

This server product is enabled for Intel VROC (Virtual RAID on CPU) to enable software RAID on connected NVMe SSDs, and ships with a VROC key as standard*
* Intel SSD Only VROC Key

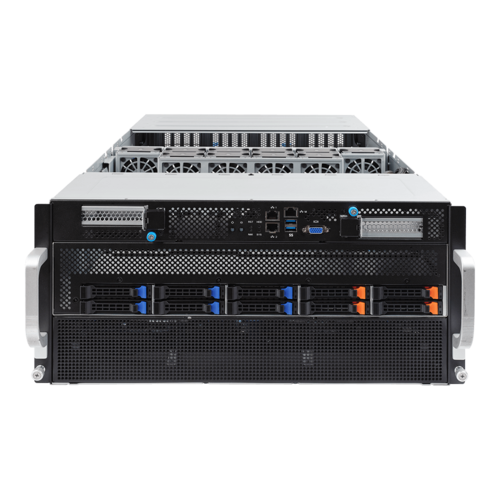

G591-HS0 Product Overview

G591-HS0 System Block Diagram

Optimized for High TDP

Gigabyte systems are thermally designed with the highest rated CPU SKUs in mind so that top performance is enabled which ever Xeon Scalable CPU you choose.

Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

Design Features for Easy Maintenance

GIGABYTE’s server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!

Tool-less Rail Kits

Rail kits attach to the side of the server chassis via clipping mechanism.

Tool-less 2.5” & 3.5” Drive Bays

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Efficient, Reliable Power Supply

Gigabyte SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.

Intelligent Power Management Features

SCMP (Smart Crises Management / Protection)

SCMP is a Gigabyte patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost. In a 2U 4 Node server, only two nodes will be switched to low power mode, while two remaining nodes can continue normal operation. When the fault is resolved or the PSU is replaced, the system will automatically return to normal power mode.

System Loading Curve

Gigabyte Management Console

Gigabyte server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

• RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
• Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
• Detailed FRU information from SMBIOS
• 10 to 30 seconds pre-event automatic recording function
• SAS / RAID controller monitoring function

Gigabyte Server Management (GSM)

Gigabyte Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each Gigabyte server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:

• GSM Server
  A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC.
• GSM CLI (GBT Utility)
  A command-line interface program to enable global remote monitoring and management of multiple Gigabyte servers via each server node’s BMC.
• GSM Agent
  A software program installed locally on each Gigabyte server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
• GSM Mobile
  A remote server management mobile APP, available for both Android and iOS.
• GSM Plugin
  A plugin that allows the user to manage and monitor Gigabyte server nodes within VMware’s vCenter.

Automatic Fan Speed Control

To achieve the best cooling and power efficiency, Gigabyte servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables Gigabyte to together rapidly develop and validate the joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
