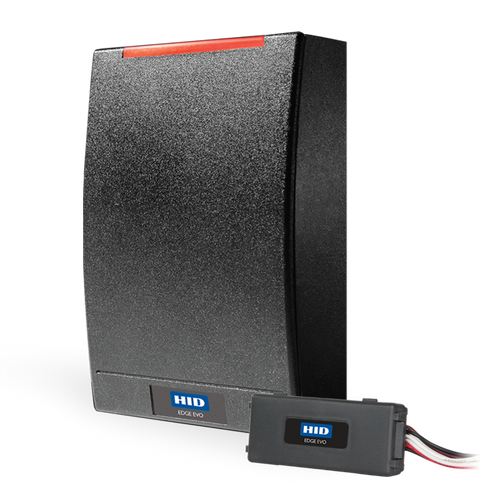

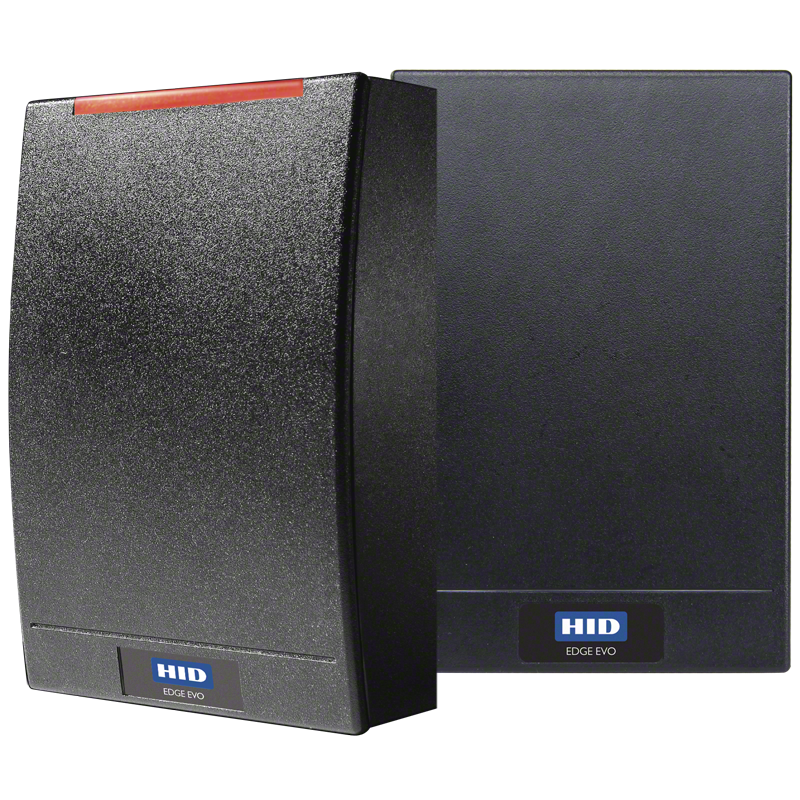

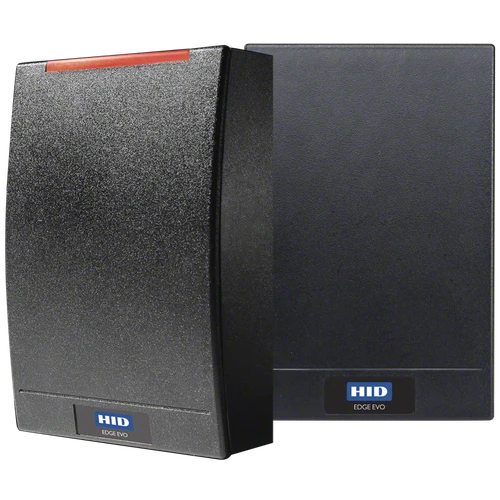

HID EDGE EVO EHR40-K Controller/Reader and Module, Interface to standard door – REX, DPS and lock -EHR40-K
Enabling cost effective installation and high performance access control functionality, the EDGE EVO EHR40-K Controller/Reader and Interface Module package is a single-door access control panel with reader and separate discrete door interface. The controller/reader is installed at the door and the Hi-O Interface Module is mounted separately in a secure location.
Additional highlights:
- The controller/reader and module are connected using the secure Hi-O bus and the Hi-O module provides interface to four discrete inputs and two outputs.
- An additional Hi-O iCLASS reader can be attached to the EHR40-K controller/reader's Hi-O bus for in/out reading.
- The EHR40-K will accept either a second Hi-O iCLASS reader using the Hi-O bus or a Wiegand /Clock-and-Data reader through the use of a Wiegand Hi-O interface module.
The integrated EDGE EVO EHR40-K Controller/Reader also offers interface to 13.56 MHz compliant credentials, including iCLASS.
