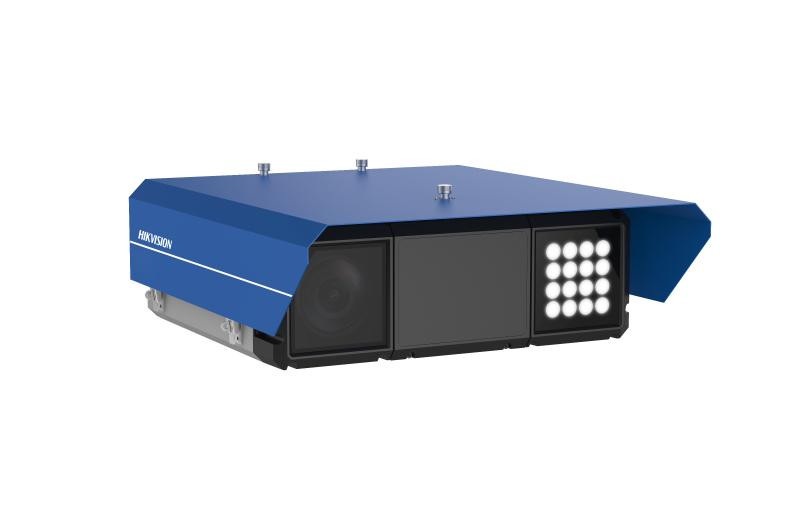

Hikvision 12 MP ANPR All-Rounder Traffic Camera - iDS-TCVC07-HER/1140(AF)
- All-in-one design, integrating camera, radar and supplement light
- High quality imaging with 12 MP resolution (1.1”GMOS)
- Excellent low-light performance, Color: 0.001 Lux@(F1.4, AGC ON)
- Support speed detection with built-in radar
- Support license plate recognition (LPR)
- Support vehicle feature recognition: vehicle type / color / manufacturer / license plate color recognition, no-plate vehicle capture
- Violation behaviors detection: driving on lane line, lane change, wrong-way driving detection, seatbelt, phone call, U-Turn, red light running, failing to yield for pedestrians, not following directional sign and stop vehicle on intersection detection.
- Supports side mounting with convenient installation and debug
- Dedicated large scale AI model for seatbelt and phone call detection.
Specification
Camera
- Image Sensor: 12 MP (1.1'' GMOS)
- Max. Resolution: 4112 × 3072
- Min. Illumination: Colour: 0.001 Lux@(F1.4, AGC ON), 0 Lux with light
- Shutter Time: 10 us - 20000 us
- Day & Night: 24/7 color imaging
Lens
- Lens Type: Varifocal lens, motorized lens, 11 to 40 mm
- Focal Length & FOV11 to 40 mm, horizontal FOV 61.8° to 23.5°, vertical FOV 32.4° to 12.2°, diagonal FOV 70.0° to 26.8°
- Focus: Auto
- Aperture: F1.6
Illuminator
- Built-in Supplement Light Type: White light
- Light Bead: 16
- Built-in Supplement Light Range: Up to 40 m
- External Supplement Light: Strobe and flash light
General
- Operating System: Linux
- Power: DC 36 V ±20%, 2 A, max. 75 W, two-core terminal block
- Material: Aluminium alloy
- Dimension437 mm × 396 mm × 139.15 mm (17.2" × 15.59" × 5.48") (L × W × H)
- Package Dimension: 535 mm × 500 mm × 390 mm (21.06" × 19.68" × 15.35") (L × W × H)
- Weight: 8.00 kg (17.6 lb.)
- With Package Weight: 13.7 kg (30.2 lb.)
- Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- Storage Condition:
-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- General Function: One-key reset, Three streams, Heartbeat, Password protection, Pixel counter
- Heater: Optional
- Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
