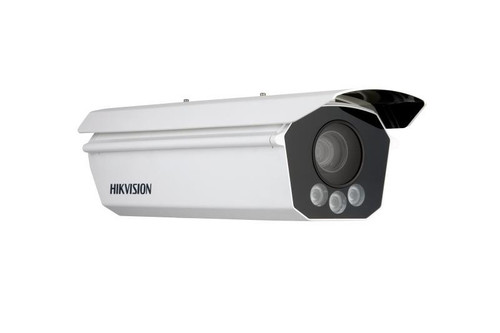

Hikvision 12 MP ANPR Checkpoint Capture Unit - iDS-TCVC00-HI/1140(AF)
- High quality imaging with 12 MP resolution (1.1”GMOS)
- Excellent low-light performance, Colour: 0.001 Lux@(F1.4, AGC ON),B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Efficient H.265 compression technology
- 3D DNR technology delivers clean and sharp images
- Support license plate recognition (LPR)
- Vehicle feature recognition: vehicle type / color / manufacturer / license plate color recognition, no-plate vehicle capture
- Violation behaviors detection: driving on lane line, lane change, wrong-way driving detection, seatbelt and phone call detection.
- Application Scenarios: highway, tunnel, toll station, urban road, etc.
- Dedicated large scale AI model for seatbelt and phone call detection.
Specification
Camera
- Image Sensor: 12 MP,1.1" GMOS
- Max. Resolution: 4112 × 3072
- Min. Illumination:
Colour: 0.001 Lux @ (F1.4, AGC ON),
B/W: 0.0005 Lux @ (F1.4, AGC ON),
0 Lux with IR
- Shutter Time:
25fps 10 us-40000 us,
30fps 10 us-30000 us
- Day & Night: IR cut filter
Lens
- Focal Length & FOV11 to 40 mm, horizontal FOV 55.9° to 21.2°, vertical FOV 33.0° to 12.5°, diagonal FOV 65.1° to 24.8°
- Focus: Auto
- Aperture: F1.6
Illuminator
- Built-in Supplement Light Type: IR light
- Light Bead: 4
- Built-in Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
- External Supplement Light: Strobe and flash light
General
- Operating System: Linux
- Power: AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block
- Material: Aluminium alloy
- Dimension: 636 mm × 174 mm × 146 mm (25.04" × 6.85" × 5.75")
- Package Dimension: 833 mm × 275 mm × 325 mm (32.80" × 10.83" × 12.80")
- Weight: 6.11x kg (13.47x lb.)
- With Package Weight: 9.92x kg (21.87x lb.)
- Operating Condition: -40 °C to 70 °C (-40 °F to 158°F). Humidity: 5% to 95% (non-condensing)
- Storage Condition: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Password protection, Three streams, Heartbeat, Pixel counter
- Heater Supported
- Language: 7 languages: English, Russian, Croatian, Korean, Spanish, Traditional Chinese, Ukrainian
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
