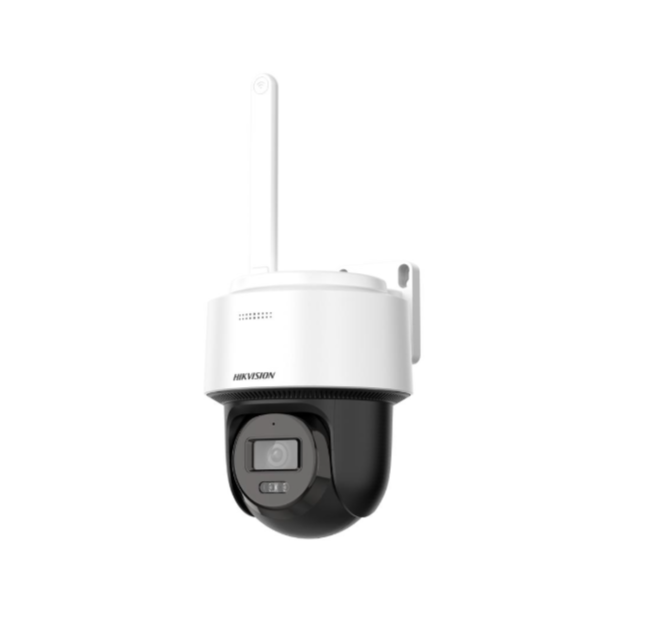

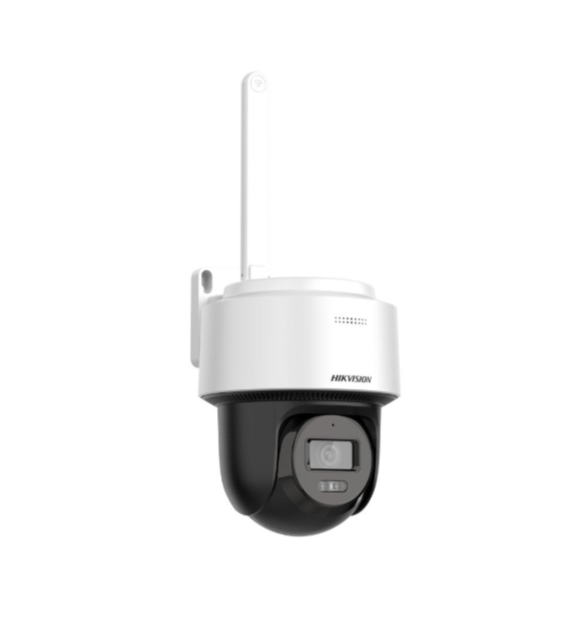

Hikvision 2 MP Fixed Outdoor Smart Hybrid-light WIFI PT Network Camera (Connect to NVS)

• Support Wi-Fi 6
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone and speaker, support two-way audio
• Support Human Detection and Auto-tracking Lite
• Water and dust resistant (IP66)

Specification

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0.04 Lux @ (F2.0, AGC ON),0 Lux with IR

Lens

• Focal Length: 2.8, 4 mm
• FOV: 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°,4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
• Aperture: F2.0

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: White light distance: up to 25 m,IR distance: up to 25 m
• IR Wavelength: 850 nm

PTZ

• Movement Range (Pan):0° to 345°
• Movement Range (Tilt): 0° to 80°
• Pan Speed: Up to 25°/s
• Tilt Speed: Up to 20°/s
• Power-off Memory: Yes

Video

• Main Stream;

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

• Sub-Stream;

  50 Hz: 25 fps (768 x 432)

  60 Hz: 30 fps (768 x 432)

• Video Compression: H.265, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile

Audio

• Audio Compression: G.711ulaw/AAC-LC
• Audio Bit Rate;

  AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps

  G.711ulaw: 64 Kbps

• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes

Wireless (Wi-Fi)

• Wi-Fi Protocols: IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
• Frequency Range: 2.4 GHz to 2.4835 GHz
• Channel Bandwidth: 20/40 MHz

Network

• Protocols: IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour, SNMP, DNS, DDNS
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• User/Host:

  Up to 32 users

  3 user levels: administrator, operator, and user

• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client:

  Wired network: Hik-Connect, iVMS-4200

  Wi-Fi: iVMS-4200

  *Wi-Fi connection with Hik-Connect directly is not possible


• Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable rectangle privacy masks

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Built-in Microphone: 1 built-in microphone
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker: 1 built-in speaker

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Linkage: Notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

• Power;

  12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

  *A switching adapter is included in the package.

• Material: Plastic
• Dimension: 131.9 mm × 163.9 mm × 312.6 mm (5.19" × 6.45" × 12.31")
• Weight:

  Weight: 600 g (1.32 lb.)

  With Package Weight: 900 g (2.0 lb.)

• Operating Condition:-30 °C to 50 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email
• Language: English, Ukrainian

Approval

• Protection: IP66 (IEC 60529-2013)
