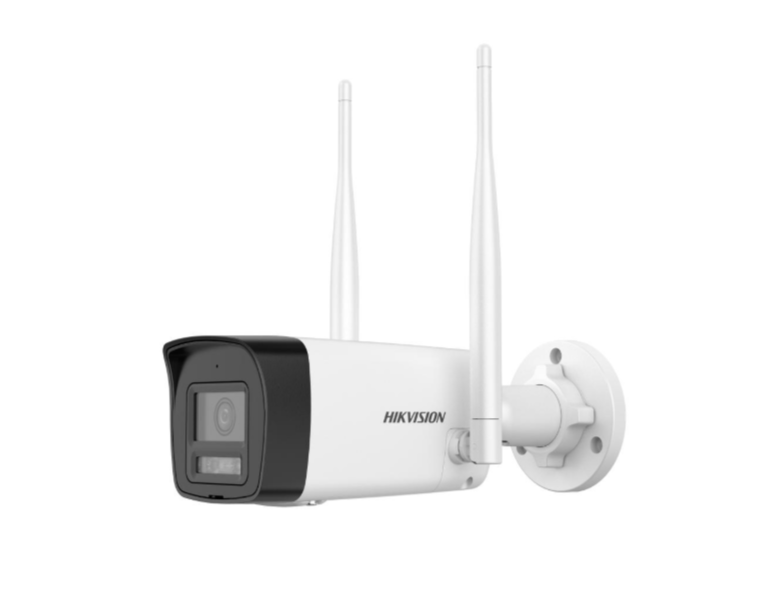

Hikvision 2 MP Outdoor Wi-Fi Fixed Bullet Network Camera

• Support Wi-Fi 6
• Good night-time performance with up to 30 m IR and 30 m white light
• Built-in microphone and speaker, support two-way audio
• Support Human and Vehicle Detection
• Water and dust resistant (IP66)
• Support on-board storage up to 512 GB (SD card slot)

DATASHEET

Specification

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV:

  2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

  4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°

  6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• Depth of Field:

  2.8 mm: 0.8 m~∞

  4 mm: 1.1 m~∞

  6 mm: 2.3 m~∞

DORI

• DORI:

  2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m

  4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m

  6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream;

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)

• Sub-Stream;

  50 Hz: 25 fps (768 × 432)

  60 Hz: 30 fps (768 × 432)

• Video Compression:

  Main stream: H.265/H.264,

  Sub-stream: H.265/H.264/MJPEG

  Fourth stream: H.265/H.264/MJPEG,

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Audio Compression: G.711(ulaw)/ (AAC-LC)
• Audio Bit Rate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Client:

  Wired network: Hik-Connect, iVMS-4200

  Wi-Fi: iVMS-4200

  *Wi-Fi connection with Hik-Connect directly is not possible

• Web Browser: Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi

• Frequency Range: 2.4 GHz to 2.4835 GHz
• Channel Bandwidth: 20/40 MHz
• Wi-Fi Protocol: IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
• Modulation;

  802.11b: DBPSK, DQPSK, CCK,

  802.11g: BPSK, QPSK, 16QAM, 64QAM,

  802.11n: BPSK, QPSK, 16QAM, 64QAM,

  802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM

• Transfer Rate;

  11b: up to 11 Mbps,

  11g: up to 54 Mbps,

  11n: up to 150 Mbps,

  11ax: up to 114 Mbps


• Wide Dynamic Range (WDR): Digital WDR
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Linkage: Notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

• Power;

  12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection, A switching adapter is included in the package.

• Material: Plastic
• Dimension: 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
• Package Dimension: 300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
• Weight: Approx. 310 g (0.68 lb.)
• With Package Weight: Approx. 550 g (1.12 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, anti-banding, mirror, password protection
• Language: 33 languages: English, Ukrainian

Approval

• EMC;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)

• Safety:

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment:

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• Protection: IP66: IEC 60529-2013
