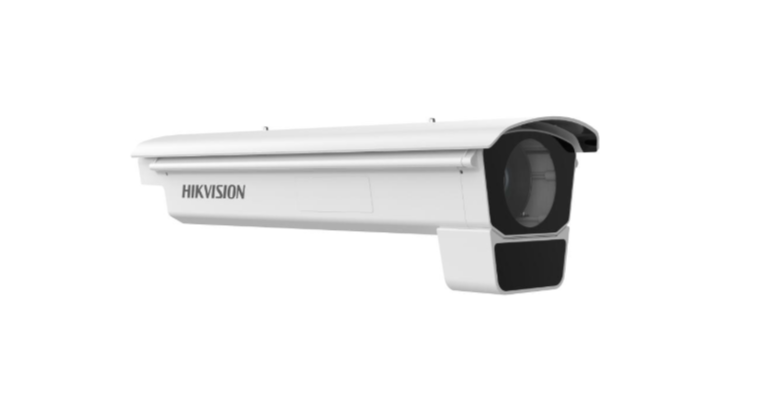

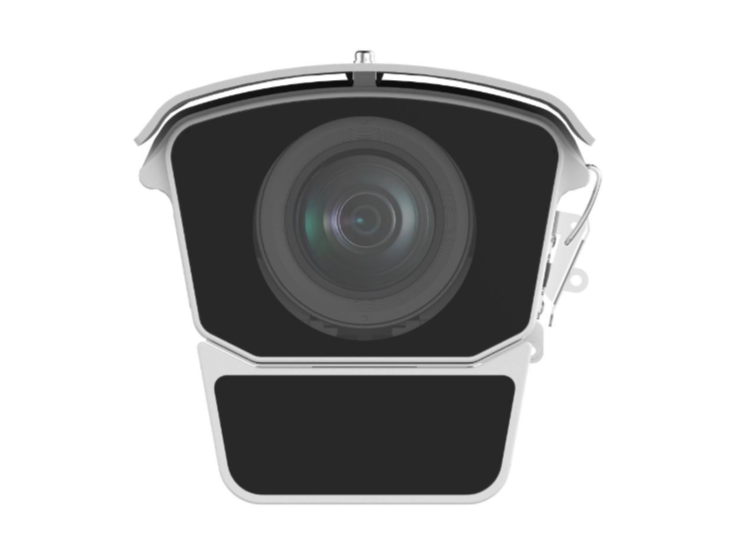

Hikvision 26MP DeepinView Fixed Box Camera With Housing

• High quality imaging with 26 MP resolution
• Clear imaging against strong back light due to DWDR technology
• Efficient H.265+ compression technology
• 3D DNR technology delivers clean and sharp images
• Audio and alarm interface available

DATASHEET

• Camera

  • Image Sensor:1.61ʺ Progressive Scan CMOS
  • Max. Resolution:6816 × 3840
  • Min. Illumination
  • Color: 0.001 Lux @ (F1.2, AGC ON)
  • Black: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter. Blue glass module to reduce ghost phenomenon.

  Lens

  • Lens Type: C/CS
  • Focal Length & FOV
  • 50 mm, horizontal FOV 22.4°, vertical FOV 12.7°, diagonal FOV 25.7°
  • 85 mm, horizontal FOV 13.3°, vertical FOV 7.5°, diagonal FOV 15.4°
  • Aperture: Max. F2.0

  DORI

  • DORI
  • 85 mm: D (Detect) : 1172.4 m, O (Observe) : 465.2 m, R (Recognize) : 234.5 m, I (Identify) : 117.2 m;
  • 50 mm: D (Detect) : 689.7 m, O (Observe) : 273.7 m, R (Recognize) : 137.9 m, I (Identify) : 69 m

  Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 100 m
  • IR Wavelength: 850 nm

  Video

  • Main Stream
    • 1 encoder track mode:
    • 264/H.265:
    • 50 Hz: 25 fps (6816 × 3840, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (6816 × 3840, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
    • 3 encoder tracks mode:
    • 264/H.265:
    • 50 Hz: 25 fps (6816 × 3840, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592)
    • 60 Hz: 30 fps (6816 × 3840, 6048 × 4008, 5472 × 3648, 4944 × 3280, 4608 × 2592)
  • Sub-Stream
  • 1 encoder track mode:
  • 264/H.265/MJPEG:
  • 50 Hz: 25 fps (704 × 480, 640 × 480)
  • 60 Hz: 30 fps (704 × 480, 640 × 480)
  • 3 encoder tracks mode: No
  •
  • Third Stream
  • 1 encoder track mode:
  • 264/H.265:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 3 encoder tracks mode: No
  •
  • Fourth Stream
  • 1 encoder track mode:
  • 264/H.265/MJPEG:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 3 encoder tracks mode: No
  •
  • Fifth Stream
  • 1 encoder track mode:
  • 264/H.265/MJPEG:
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • 3 encoder tracks mode: No
  • Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • Fourth stream: H.265/H.264/MJPEG
  • Fifth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 32 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 4 fixed regions for each stream
  • Target Cropping: Yes

  Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression: G.722.1/MP2L2/G.726/G.711/MP3/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/PCM/16 to 64 Kbps (AAC-LC)
  • Audio Type: Mono sound

  Network

  • Simultaneous Live View: Up to 20 channels
  • API: ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
  • Protocols: SSL/TLS,IGMP,UPnP,WebSocket,SNMP,IPv4,DNS,Bonjour,UDP,WebSockets,RTSP,RTCP,DDNS,NTP,RTP,HTTP,ICMP,PPPoE,802.1X,DHCP,QoS,FTP,SMTP,HTTPS,SFTP,IPv6,TCP/IP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage: NAS (NFS, SMB/CIFS)
  • Client: iVMS-4200, HikCentral Professional
  • Web Browser
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Wide Dynamic Range (WDR): Digital WDR
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Day/Night Switch: Night, Alarm Trigger, Day, Schedule, Auto
  • Image Enhancement: HLC,3D DNR, EIS, BLC
  • Image Settings: contrast, saturation, white balance, brightness, gain, sharpness

  Satellite Positioning

  • Satellite Positioning Detection: GPS

  Interface

  • Alarm:3 inputs, 3 outputs (max. 24 VDC/VAC, 1 A)
  • Audio
  • 1 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
  • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Video Output:1 Vp-p composite output (75 Ω/CVBS), only for adjustment
  • Reset Key: Yes
  • Ethernet Interface:1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • Power Output:12 VDC, max. 100 mA
  • Fiber Optical: 1 fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate

  Event

  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording

  Deep Learning Function

  • People Density
  • Supports up to 8 detection regions, and independent arming schedule and linkage method
  • People density detection: supports setting density levels based on the number of people and target pixel ratio
  • Supports scheduled data uploading

  General

  • Power: 24 VAC ± 20%, 2.28 A, max. 37.4 W
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, pixel counter
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
  • Material: Metal
  • Dimension: 569 mm × 171.5 mm × 165.8 mm (22.4" × 6.75" × 6.53")
  • Package Dimension: 668 mm × 408 mm × 289 mm (26.3″ × 16.06″ × 11.38″)
  • Weight: Approx. 5.08 kg (11.2 lb.)
  • With Package Weight: Approx. 7.9 kg (17.42 lb.)

  Approval

  • EMC
  • CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • RCM: AS/NZS CISPR 32: 2015,
  • Safety
  • CB: IEC 62368-1: 2014+A11,
  • CE-LVD: EN 62368-1: 2014/A11: 2017,
  • LOA: IEC/EN 60950-1
  • Environment
  • CE-ROHS (2011/65/EU);
  • REACH (Regulation (EC) No 1907/2006);
  • WEEE (2012/19/EU);
  • Protection: IP66: IEC 60529-2013
  • Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
