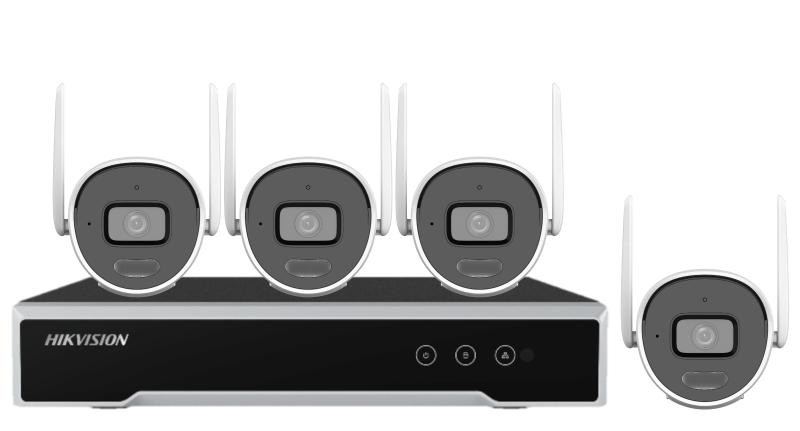

Hikvision 2MP H.265 Bullet WIFI Kit - NK842W0H(E)

• One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 4-ch @ 2MP
• Four 2 MP bullet Wi-Fi cameras with efficient H.265 compression technology
• One network cable
• Auto Wi-Fi connection and easy installation
• Hik-Connect cloud service and app for remote management and viewing of devices.

Specifications

Camera

• Camera Case Type: Bullet
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day &Night: IR cut filter
• WDR: Digital WDR
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Protection Level: IP66
• Material: Base: Metal, front cover: Metal, back cover: Plastic
• Wi-Fi Support: Yes

Camera/Lens

• Focal Length: 2.8 mm
• Aperture: F1.6
• Focus: Fixed
• FOV: 2.8 mm, horizontal FOV: 112°, vertical FOV: 59°, diagonal FOV: 134°
• Lens Mount: M12

Camera/Compression Standard

• Video Compression;

Main stream: H.265/H.264,

Sub-stream: H.265/H.264

• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes

Camera/Image

• Max. Resolution: 1920 × 1080
• Main Stream;

50Hz: 25 fps (1920 × 1080, 1280 × 720)

60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-stream;

50Hz: 25 fps (640 × 360)

60Hz: 30 fps (640 × 360)

• Image Setting: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Camera/Network

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP
• General Function: Heartbeat, anti-banding, mirror, password protection

Camera/Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Audio I/O: 1 built-in microphone

Camera/General

• Power Supply: 12 VDC ± 25%, 0.5 A, max 6 W, Ø5.5 mm coaxial power plug,reverse polarity protection,
• Consumption: ≤ 6 W
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 95% or less (non-condensing)
• Dimension (W × D × H): 176.3 mm × 89.1 mm × 74.5 mm (6.9" × 3.5" × 2.9")
• Weight: Approx. 350 g (0.8 lb.)

Camera/Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m

NVR/Video and Audio

• IP Video Input: 8-ch
• Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps
• HDMI/VGA Output;

  1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  HDMI/VGA simultaneous output

• Audio Output: 1-ch, RCA (linear, 1 KΩ)

NVR/Decoding

• Video Resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCI
• Synchronous Playback: 8-ch
• Capability: 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)

NVR/Network

• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

NVR/Wi-Fi

• Frequency Band: 2.4 GHz
• Antenna Structure: 2 × 2MIMO
• Transmission Speed: 144 Mbps
• Transmission Standard: IEEE 802.11b/g/n

NVR/Auxiliary Interface

• Capacity: Up to 6 TB capacity
• USB Interface: 2 × USB 2.0

NVR/General

• Power Supply: 12 VDC, 1.6 A
• Consumption (without HDD and PoE off): ≤ 10 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 265 × 246 × 48 mm (10.4" × 9.7" × 1.9")
• Weight (without hard disk): ≤ 1.6 kg (3.5 lb.)

Kit

• Accessories;

Power adaptor: 4 × IPC power adaptors, 1 × NVR power adaptor

Ethernet cable: RJ45, Cat5e UTP, 1 m.

• Certification: CE
• Weight (with package): ≤ 7 kg (15.4 lb.)
