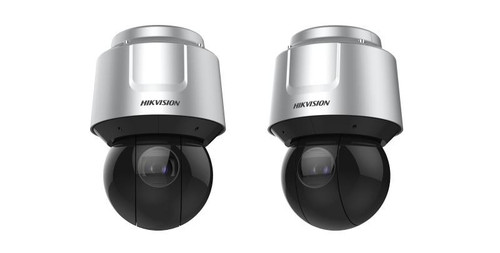

Hikvision 4K 42X Powered by DarkFighter IR Network - DS-2DF8A842IXG-EL

• 1/1.8" Progressive Scan CMOS
• High quality imaging with 8 MP resolution
• Excellent low-light performance with Powered-by-DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles
• Smart Pan-Tilt Correction

Datasheet

Specifications

Camera

• Image Sensor: 1/1.8" progressive scan CMOS
• Min. Illumination: Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.0005Lux @ (F1.2, AGC ON)
• Shutter Speed: 1/1 s to 1/30,000 s
• Slow Shutter: Yes
• Day & Night: IR cut filter
• Zoom: 42x optical, 16x digital
• Max. Resolution: 3840 × 2160

Lens

• Focus: Auto, semi-auto, manual, rapid focus
• Focal Length: 6.0 mm to 252 mm
• Zoom Speed: Approx. 4.8 s
• FOV;

Horizontal field of view: 56.6° to 1.7° (wide-tele),

Vertical field of view: 33.7° to 0.9° (wide-tele),

Diagonal field of view: 63.4° to 1.9° (wide-tele)

• Aperture: Max. F1.2

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 500 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -20° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Power-off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

General

• General Function: Mirror, password protection, watermark, IP address filter
• Power: 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
• Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
• Dimension: ⌀ 267 mm × 405 mm (⌀ 10.51" × 15.94")
• Weight: Approx. 8.5 kg (18.74 lb.)
