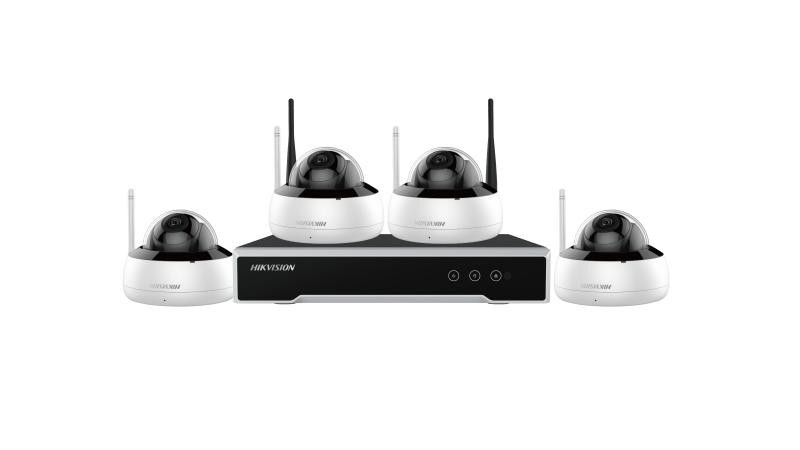

Hikvision 4MP H.265 Dome Wi-Fi Kit - NK44W1H-1T(E)

• One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 2-ch @ 1080p
• Four 4 MP dome Wi-Fi cameras with efficient H.265 compression technology
• One network cable and one HDMI cable
• Auto Wi-Fi connection and easy installation
• Hik-Connect cloud service and app for remote management and views of devices

Specifications

Camera

• Camera Case Type: Dome
• Image Sensor: 1/3" Progressive Scan CMOS
• Min. Illumination: 0.028 Lux
• Shutter Speed: 1/3 s to 1/100,000 s
• Day &Night: IR cut filter
• WDR: DWDR
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
• Protection Level: IP66
• Material: Plastic
• Wi-Fi Support: Yes

Camera/Lens

• Focal Length: 2.8 mm
• Aperture: F2.0
• Focus: Fixed
• FOV: Horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117°
• Lens Mount: M12

Camera/IR

• IR Range: Up to 30 m

Camera/Compression Standard

• Video Compression: H.265+;H.265;H.264+;H.264;MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.264+: Main stream supports
• H.265 Type: Main Profile
• H.265+: Main stream supports
• Video Bit Rate: 32 Kbps to 8 Mbps
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Camera/Image

• Max. Resolution: 4MP
• Main Stream;

50 Hz: 20 fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-stream;

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Image Setting: Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
• Day/Night Switch: Auto/Scheduled/Day/Night

Camera/Network

• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
• General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Camera/Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: 128 GB
• Audio I/O: 1 Built-in mic
• Video Out: No
• Alarm I/O: No
• Reset Button: Yes

Camera/General

• Power Supply: 12 VDC ± 25%, 0.5 A, Φ 5.5 mm coaxial plug power
• Consumption: ≤ 6 W
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 95% or less (non-condensing)
• Dimension (W × D × H): Φ 121.4 mm × 92.2 mm (Φ 4.8" × 3.6")
• Weight: 467g (1 lb)

NVR/Video and Audio

• IP Video Input: 4-ch
• Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps
• HDMI/VGA Output: 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output: 1-ch, RCA (linear, 1 KΩ)

NVR/Decoding

• Video Resolution: 4 MP/3 MP/1080p/1.3 MP/720p
• Synchronous Playback: 4-ch
• Capability: 2-ch@1080p/1-ch@4 MP

NVR/Network

• Network Interface: 1, RJ45 10/100M Ethernet interface
• Network Protocol: IPv6, UPnP™, NTP, SADP, DHCP
• Remote Connection: 16

NVR/Wi-Fi

• Frequency Band: 2.4 GHz
• Antenna Structure: 2 × 2MIMO
• Transmission Speed: 144 Mbps
• Transmission Standard: IEEE 802.11b/g/n

NVR/Auxiliary Interface

• SATA: 1
• Capacity: Up to 6 TB capacity for each disk
• USB Interface: Rear panel: 2 × USB 2.0
• Alarm In/Out: No

NVR/General

• Power Supply: 12 VDC
• Consumption (without HDD and PoE off): ≤ 12 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 260 mm × 246 mm × 48 mm (10.2" × 9.7" × 1.9")
• Weight (without hard disk): ≤ 1 kg (2.2 lb)

Kit

• Accessories;

Power cable: 4 × IPC power cables, 1 × NVR power cable

Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch

HDMI cable: 1 × HDMI cable, 2 m, black

• Hard Drive: Pre-installed 1 TB HDD
• Certification: FCC, CE
• Weight (with package): ≤ 7 kg (15.4 lb)
