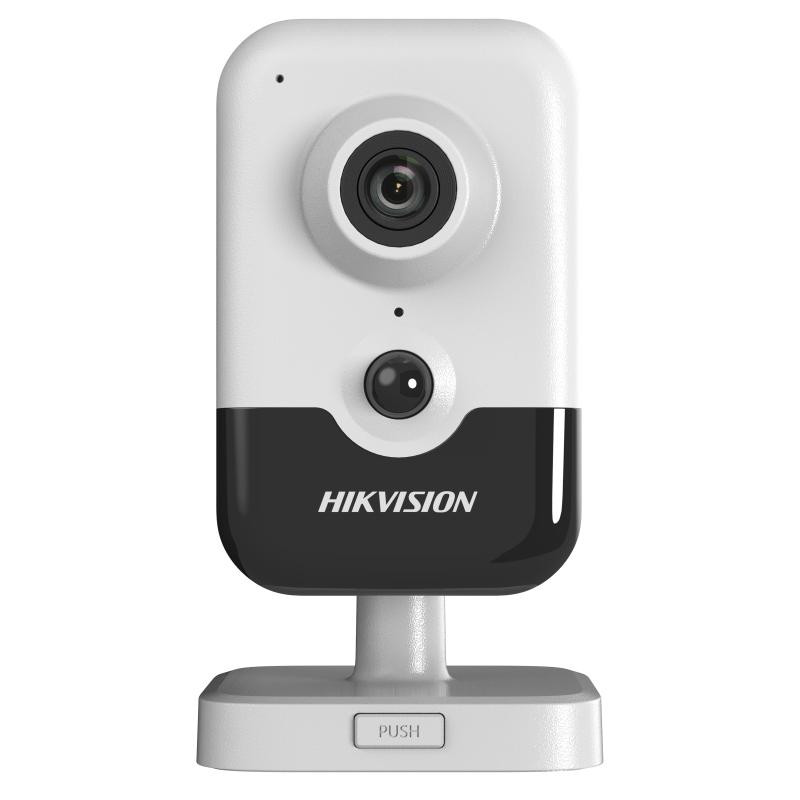

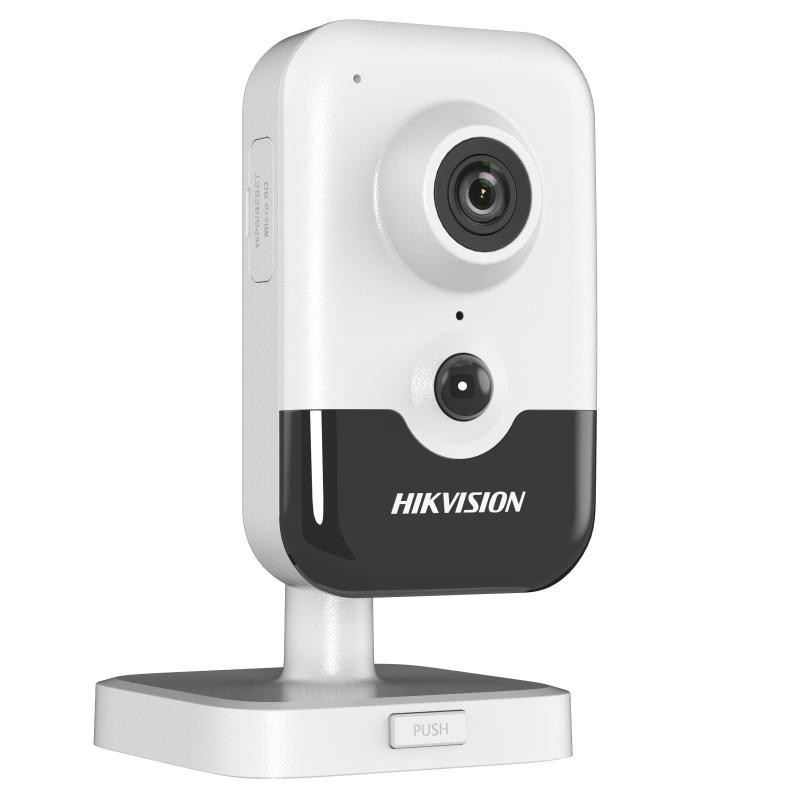

Hikvision 6 MP AcuSense Built-in Mic Fixed Cube Network Camera

• High quality imaging with 6 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Detect human body through passive infrared which is sensitive to body temperature (PIR)

Specification

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Focal Length & FOV:

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

• Aperture: F1.6
• Lens Mount: M12

DORI

• DORI:

• mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11m

Illuminator

• Supplement Light Range: Up to 10 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

General

• Power

12 VDC ± 25%, 0.5 A, max. 5.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7 W

• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-flicker
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Dimension: 9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
• Weight: 120 g (0.3 lb.)
• With Package Weight: 370 g (0.8 lb.)
