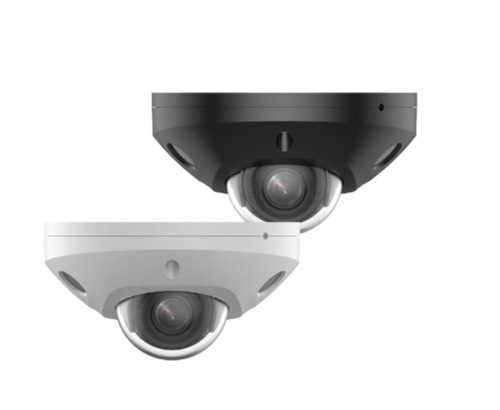

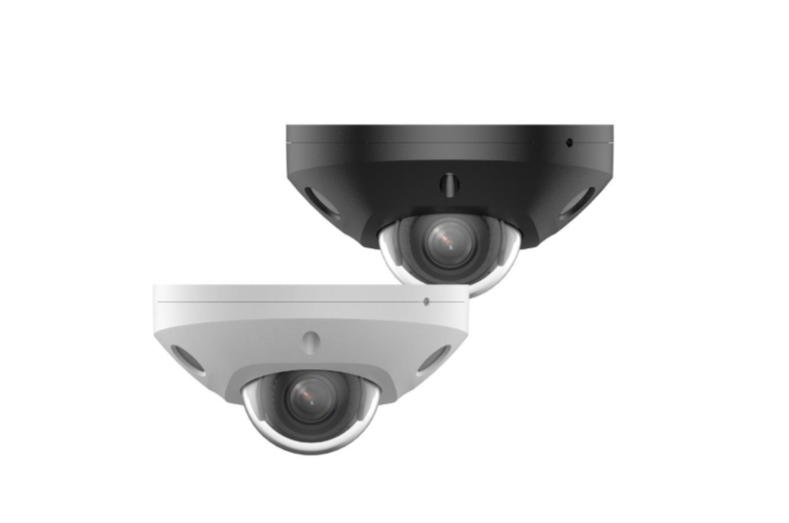

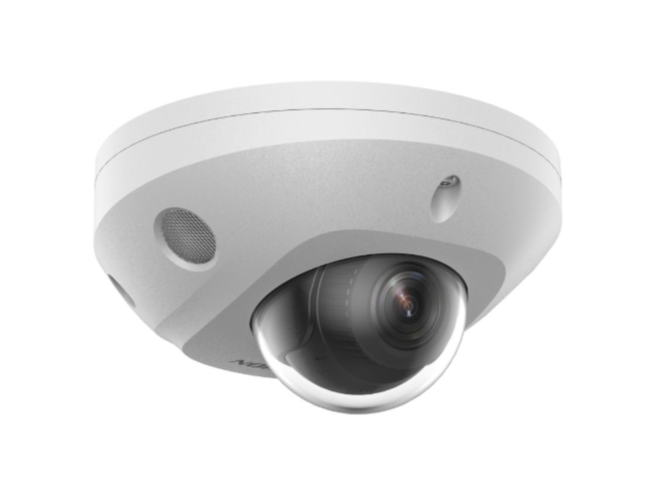

Hikvision 6 MP Acusense Fixed Mini Dome Network Camera

• High quality imaging with 6 MP resolution
• AcuSense: Focus on human and vehicle classification based on deep learning
• Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes
• Built-in dual microphone for real-time high quality audio security
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Water and dust resistant (IP67) and vandal-resistant (IK08)

DATASHEET

Specification

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -30° to 30°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

  2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

  4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:

  2.8 mm: 1.8 m to ∞

  4 mm: 3.1 m to ∞

DORI

• DORI:

  2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

  4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream;

  50 Hz:

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream;

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression:

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Bit Rate Control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Target Cropping: Yes

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G)
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Network Storage:

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser:

  Plug-in required live view: IE 11,

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Audio;

  Built-in Microphone: Dual Array Microphone

  -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, Loitering Detection, People Gathering Detection, People Running Detection, Parking Detection, Video Quality Diagnosis
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture,-S: trigger alarm output

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection:

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power;

  12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7 W

• Material: Base: aluminum, cover: plastic
• Dimension: Ø110 mm × 59.2 mm (Ø4.33" × 2.33")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
• Weight: Approx. 390 g (0.86 lb.)
• With Package Weight: Approx. 607 g (1.34 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approval

• EMC;

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety:

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment:

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
