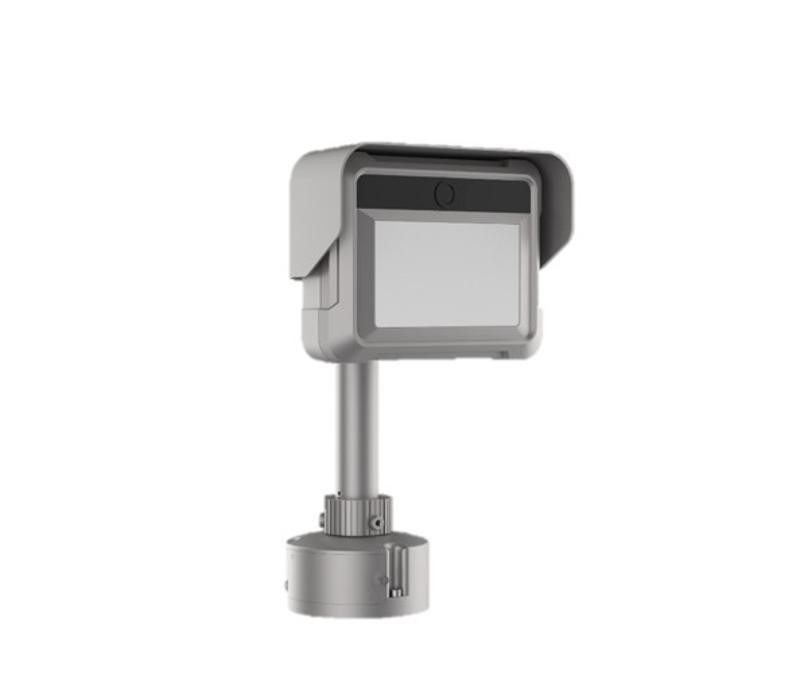

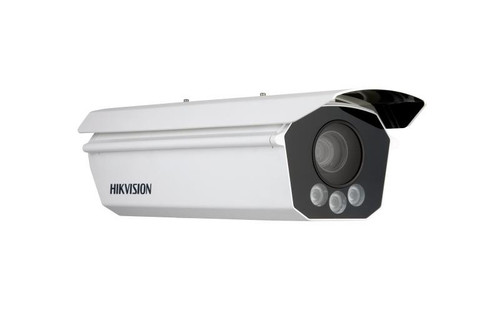

Hikvision 8 Mp Radar-video Fusion Incident Detection Camera - iDS-TCS802-FS/200m/12

• High quality imaging with 8 MP resolution (1/1.8”CMOS) & 80GHz MMW radar
• H.264/H.265 High Profile encoding, maximum Full HD 3840 × 2160 @ 25fps real-time image output
• Color: 0.01 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON)
• 3D DNR technology delivers clean and sharp images
• Supports multi-target vehicle trajectory detection and target visualization
• Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Speeding, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Traffic Accident, Not Slowing Down at Crosswalk, Continuous Lane Change.
• Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy
• Supports two application scenarios: urban and intersection

Datasheet

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination;

Color: 0.01 Lux @ (F1.2, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON)

• Shutter Time: 118 to 40000 μs
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 12 mm
• Focal Length & FOV:

12 mm, horizontal FOV 37°, vertical FOV 21°, diagonal FOV 43°

• Iris Type: Fixed iris
• Aperture: F1.6-C

Road Traffic and Vehicle Detection

• Coverage: Up to 4 lane(s)
• Trigger Mode: Video trigger
• Smart Function;

Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Speeding, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Traffic Accident, Not Slowing Down at Crosswalk, Continuous Lane Change.,

Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy.

General

• Operating System: linux
• Power: DC 36 V ± 20%, 0.8 A, max. 30 W, two-core terminal block
• Material: Aluminum alloy
• Dimension: 226 mm × 206.4 mm × 375.3 mm (8.9" × 8.1" × 14.8") (L × W × H)
• Package Dimension: 290 mm × 276 mm × 460 mm (11.42" × 10.87" × 18.11") (L × W × H)
• Weight: Approx. 3 kg (6.6 lb.)
• With Package Weight: Approx. 4.69 kg (10.34 lb.)
• Operating Condition: -30 °C to 70 °C (22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing)
• General Function: Heartbeat, Password protection, Three streams, One-key reset
• Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
