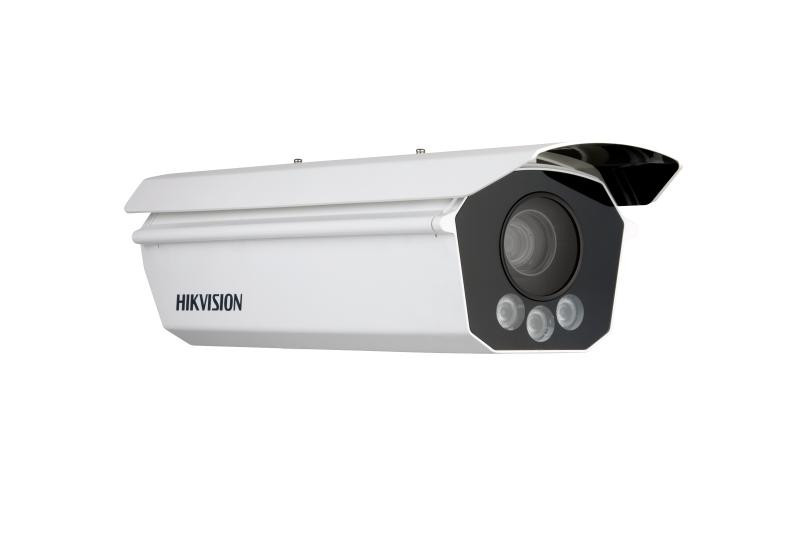

Hikvision 9 MP Incident Detection Capture Unit - iDS-TCS900-FI

• High quality imaging with 9 MP resolution (1”GMOS)
• H.264/H.265 High Profile encoding, maximum Full HD 4096×2160@ 50fps real-time image output
• Color: 0.001 Lux@(F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON)
• 3D DNR technology delivers clean and sharp images
• Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Emergency Lane Occupation, Rapid Deceleration, Smoke, Fire, Occupied by Animal
• Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy
• Supports two application scenarios: highway and urban expressway

Datasheet

Specification

Camera

• Image Sensor: 1" GMOS
• Max. Resolution: 4096 × 2160
• Min. Illumination;

Color: 0.001 Lux@(F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR

• Shutter Time: 7 us-20000 us
• Day & Night: IR cut filter

Lens

• Lens Type: Varifocal lens, motorized lens, 11 to 40 mm
• Focal Length & FOV:

11 to 40 mm, horizontal FOV 62° to 23.6°, vertical FOV 32.2° to 12.2°, diagonal FOV 70° to 26.8°

• Iris Type: Auto
• Aperture: F1.6-25

Road Traffic and Vehicle Detection

• Coverage: Up to 4 lane(s)
• Trigger Mode: Video trigger
• Smart Function;

Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Emergency Lane Occupation, Rapid Deceleration, Smoke, Fire, Occupied by Animal.

Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy.

General

• Operating System: linux
• Power: DC 24 V ±20%, 2 A, max. 48 W, 2-core terminal block
• Material: Aluminum alloy
• Dimension: 501.0 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") (L × W × H)
• Package Dimension: 667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H)
• Weight: Approx. 5.13 kg (11.31 lb.)
• With Package Weight: Approx. 7.4 kg (16.31 lb.)
• Operating Condition: -30 °C to 70 °C (22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing)
• General Function: Heartbeat, Password protection, NTP time adjustment, One-key reset, Watermark
• Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
