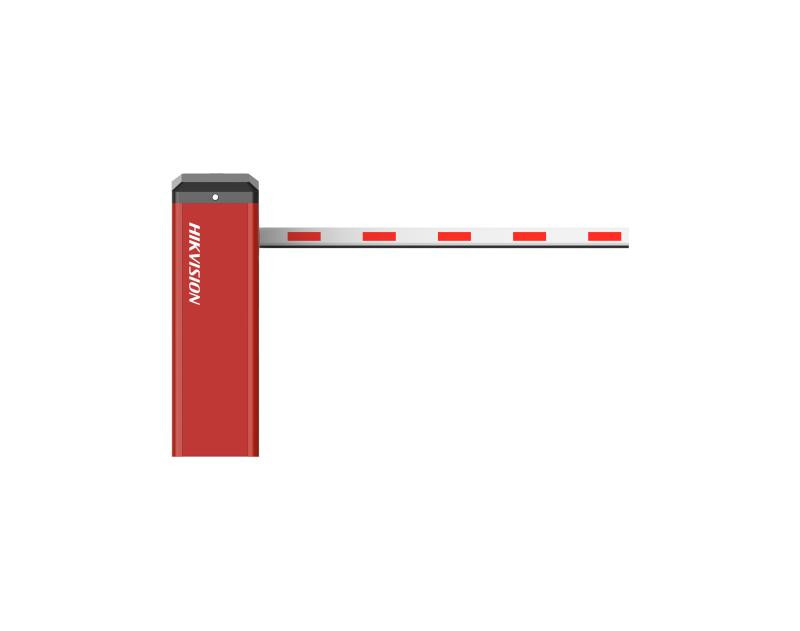

Hikvision Barrier Gates With Straight Boom Pole Octagonal/ Telescopic
- DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
- The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
- High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
- Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
- Multiple anti-hitting modes via induction, IR, pressure wave, etc.
- The boom pole direction is adjustable from left to right, or from right to left.
- Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
- Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
Package
- Barrier Housing Dimensions (L × W × H): 1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch)
- Body Weight: 59.3 ± 5 kg (130.7 ± 11.0 lb.)
- Body Dimensions (with Package, Without Boom Pole) (L × W × H): 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)
Barrier Housing
- Barrier Housing Material: SGCC
- Barrier Housing Thickness: 2.0 mm
- Barrier Housing Door Thickness: 1.5 mm
- Barrier Housing Colour: Orange
- Barrier Housing Door Colour: Orange
- Boom Pole Installation Height: 880 mm
- Body Indicators: without indicator
Barrier Gate General
- Matched Boom Pole Type:
Round boom pole: 1 to 4 m
anti-collision octagonal boom pole: 1 to 6 m
Octagonal telescopic boom pole: 4 to 6 m
Boom pole ≥ 5 m: with spindle rod
- Rising/Falling Speed:
DS-TMG520-H(3m):
Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S
Falling: 3S(Default) Adjustable 1.5S, 2S, 3S
DS-TMG520-M(4m):
Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(6m):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-M(4m telescopic pole):
Raising: 2S(Default) Adjustable 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S
DS-TMG520-L(5m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
DS-TMG520-L(6m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S
- Boom Pole Direction: right by default, direction switchable
- Boom Pole Falling Delay: 10 s by default (configurable), min. 10 s (every 10 s followed a gap)
- Motor Type: DC brushless motor
- Number of Cycles: 5000000
- Working Voltage: 220 VAC ± 15%
- Remote Controller Frequency: 433 MHz
- Current: 1.5 A
- Consumption: 300 W
- Temperature and Humidity: -30 °C to 70 °C (-22 °F to 158 °F)
- Rising Boom Pole for Power off: Optional, not supported by default
Approval
- RF:
CE-RED
EN 300220-1 V3.1.1
EN 300220-2 V3.1.1
EN 301489-1 V2.2.3
EN 301489-3 V2.1.1
EN IEC 62311: 2020
- EMC:
CE-EMC：
EN 55032: 2015 + A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019 + A1: 2021,
EN 61000-3-3: 2013 + A1: 2019 + A2: 2021,
EN 50130-4: 2011 + A1: 2014
- Security:
CE-LVD:
EN 62368-1: 2014 + A11: 2017
CB:
IEC 62368-1: 2014
IEC 62368-1: 2018
- Environment: ROHS
- Protection: IP54
