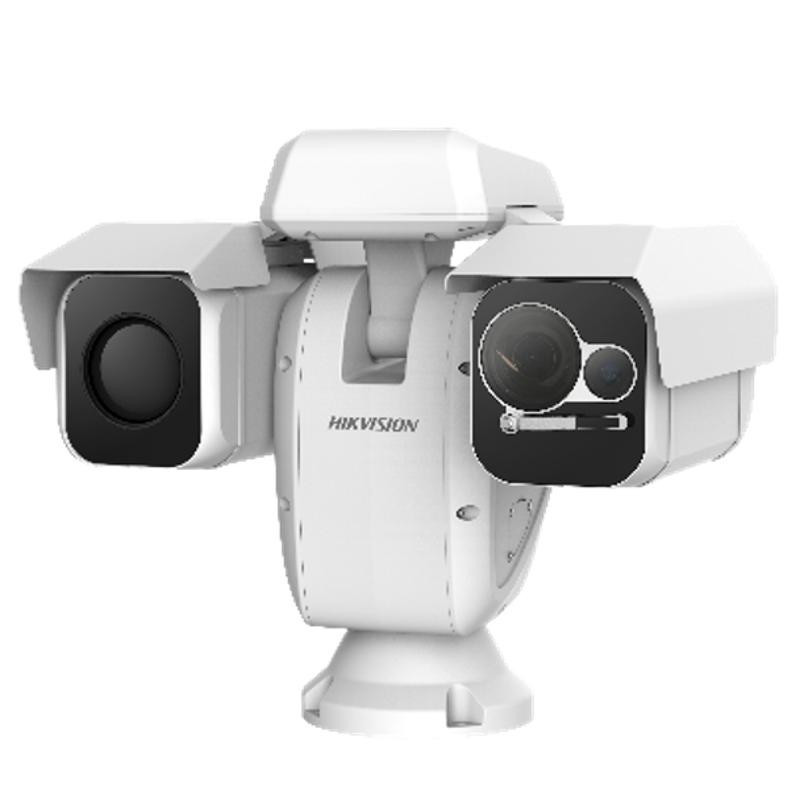

Hikvision DS-2TD6237-75C4L/W Thermal & Optical Bi-spectrum Network Positioning System
- Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
- Temperature exception alarm for fire prevention
- Fire detection smoke detection algorithm
- 384 × 288 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- thermal channel supports EIS, conflicted with intelligent function
DatasheetSpecifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 384 × 288
- Pixel Pitch: 17 μm
- Spectral Range: 8 μm to 14 μm
- NETD: Less than 35 mK (@25 °C,F#=1.0)
- Focal Length: 75 mm
- Focus Mode: Athermalized
- IFOV: 0.23 mrad
- Field of View: 4.98° × 3.74°(H × V)
- Min. Focusing Distance: 8 m
- Aperture: F1.0
- Digital Zoom: ×1,×2, ×4, ×8
Optical Module
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 2688 × 1520, 4 MP
- Min. Illumination: Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
- Shutter Speed: 1.1 s to 1/30,000 s
- Focal Length: 6 to 336 mm 56x
- Field of View: Wide: 0.92° × 0.52°; Tele: 48.26° × 28.43°
- Aperture (Range): F1.3-F4.0
- Focus Mode: Semi-auto & Manual
- Shutter Speed: 1 s to 1/30,000 s
- WDR: 120 dB
- Optical Defog: Yes
General
- Power Supply: 36VDC ± 20%, 48VDC ± 20%, two-core terminal block
- Power Consumption: 5 A, max. 120 W
- Work Temperature/Humidity: From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
- Wiper: Yes
- Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension: 486.1 mm × 337.6 mm × 450.3 mm (19.14 ‘’ × 13.29‘’ × 17.73 ‘’)
- Weight: Approx. 20 kg (44.092 lb)
Detection Range Table/Smart Function Range
- VCA Range for Humans: 525 m
- VCA Range for Vehicles: 1575 m
