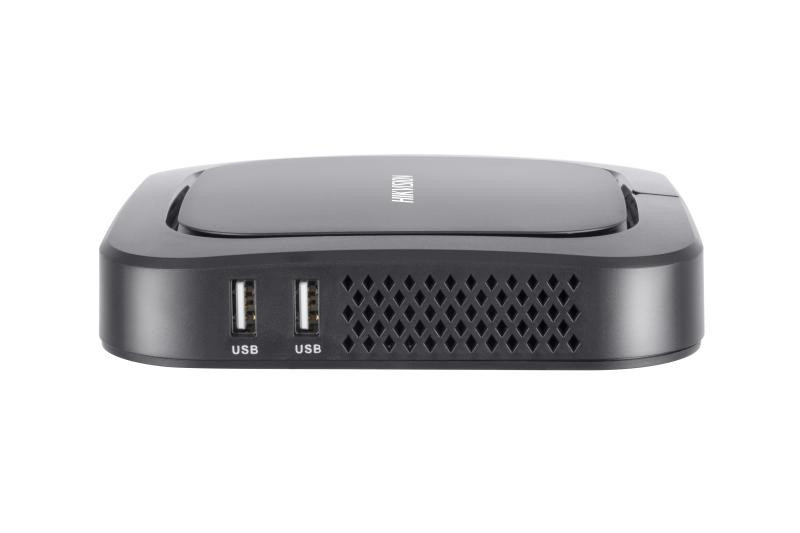

Hikvision DS-D60E-B Digital Signage Box

• Variable Materials Supports static and dynamic materials, including the application, pictures, audio, video, PDF, streaming media, webpage, live video, third-party data, etc.
• Flexible Program Schedule Supports free schedule and district display of multiple materials. Supports variable display modes: display by day, display by week, custom display, etc.
• Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, timed brightness/volume, and screenshot previewing.
• Organization Feature 5-level organization is available for managing materials, programs, terminals, and users.
• Multilevel User Permission Supports creating custom users, and allocating permission for users according to user level.
• Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver to secure safe for broadcast contents. Encryption of data storage and transmission to avoid data tampering.
• Arbitrary Direction Remote Control The remote control, adopting wireless communication in 433 MHz, can control the information distribution box in arbitrary direction.

Specifications

Cabinet

• Resolution: 1920 × 1080@30 Hz，1920 × 1080@50 Hz，1920 × 1080@60 Hz，1280 × 720@30 Hz，1280 × 720@50 Hz，1280 × 720@60 Hz，3840 × 2160@30 Hz，3840 × 2160@50 Hz，3840 × 2160@60 Hz

Built-in System

• Operation System: Android 8.1.0
• CPU: Cortex-A17, 4-core, main frequency 1.6 GHZ
• Memory: 2 GB
• Storage: 16 GB (EMMC)

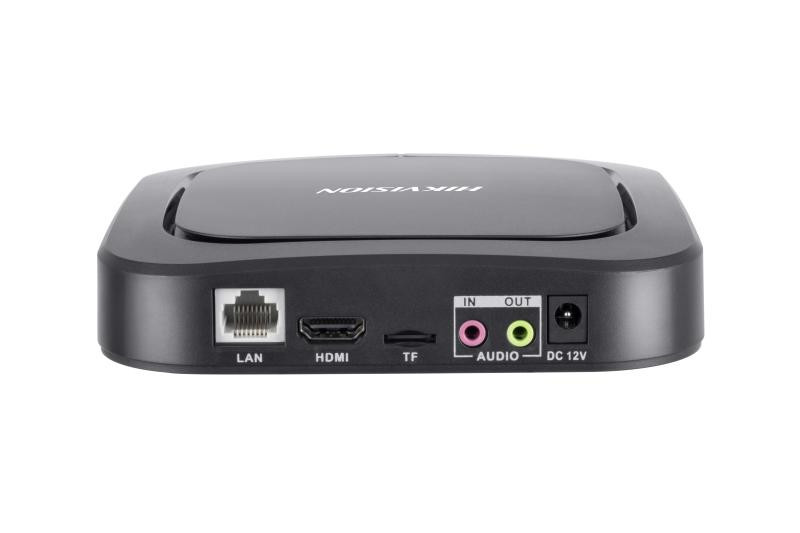

Interface

• Video & Audio Input: AUDIO IN × 1
• Video & Audio Output: AUDIO OUT × 1，HDMI OUT × 1
• Network Interface: LAN × 1，Wi-Fi
• Data Transmission Interface: USB 2.0 × 2 , Bluetooth 4.0

Power

• Power Supply: 12 VAC, 2 A
• Standby Consumption: ≤ 1 W

Working Environment

• Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)

General

• Product Dimensions (W × H × D): 145 mm × 145 mm × 31.89 mm (5.7" × 5.7" × 1.3")
• Working humidity: 10 % to 90 %
• Package Dimensions (W × H × D): 188 mm × 176 mm × 101 mm (7.4" × 6.9" × 4.0")
• Net Weight: 0.6 kg (1.3 lb.)
• Gross Weight: 0.65 kg (1.4 lb.)
• Packing List: Power Adaptor × 1, Remote Control× 1

Default Parameters

• Material;

DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF,

MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF,

MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
