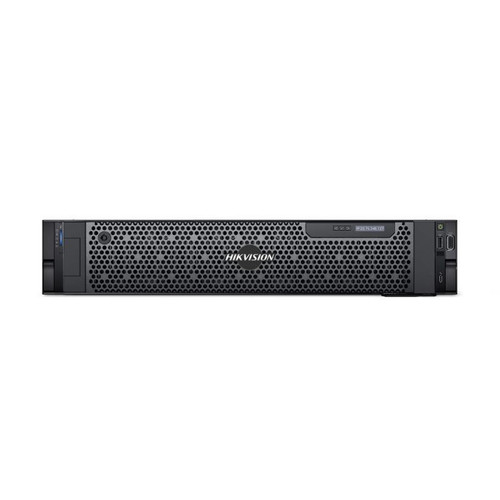

Hikvision Dual-socket Rackmount Servers - DS-VH22-R/HW52E

• Innovate at scale with challenging and emerging workloads, purpose-built for growing scale-out solutions
• Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
• Supports multiple management models,best to manage your device.1:1 or 1:Many; Full remote control and management functions.
• Feature-optimized server with ideal selection of CPU, I/O, and storage performance for scale-out environments to meet data needs, suitable for various scale scenarios

Specifications

Hardware Specifications

• CPU:

• 4410T (2.7 GHz-4.0 GHz, 26.25 MB Cache， 10 Cores, 20 Threads ) • 4410Y (2.0 GHz-3.9 GHz, 30 MB Cache， 12 Cores, 24 Threads ) • 6426Y (2.5 GHz-4.1 GHz, 37.5 MB Cache， 16 Cores, 32 Threads )

• Memory:
• Support 16GB/32GB/64GB DDR5 RDIMM, 4800MT/s ECC • Slots: 16 x DDR5 DIMM slots, supports RDIMM 16x64 GB MAX (1 CPU Configuration with 8 slots available，2 CPU configuration with 16 slots available.)

• Hard Disks:

• 2TB/ 4TB/ 8TB/ 12TB/ 16TB/22TB 7.2K SATA Hot-plug HDD • 480GB/ 960GB/ 1.92TB/ 3.84TB SATA Hot-plug SSD • Slots: 8 x 3.5-inch SAS/SATA (HDD/SSD) slots, supports HDD 8 x 22TB max (Empty slots do not include hard drive bays by default)

• Storage Controller:

• PERC H355 adaptor LP, support RAID 0/1 • PERC H755 adaptor LP, support RAID 0/1/5/6/10 (Optional)

• Supported Operating Systems: Winserver 2022 multilingual version (Optional)
• PCIe Slots:

• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

Management

• Remote Manage;

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Manual

• OpenManage Software;

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

• Integrations and Connections;

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

• Security;

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Secured-core server
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Ports

• USB 3.00: 0（Front）+1（Rear）
• USB 2.0: 1（Front）+1（Rear）
• Ethernet Port: 1 GbE×6/ 1 GbE×2+10 GbE x 2
• VGA: 2
• iDRAC Direct (Micro-AB USB) Port: 1
• iDRAC Ethernet Port: 1
• Manager Port: 1

General

• Net Weight: 28.6 kg (63.0 lb)
• Gross Weight: 46.4 kg (102.29 lb)
• Dimension (W × H × D): 482.0 mm × 86.8 mm × 721.62 mm (18.97'' × 3.41'' × 28.4'')
• Package Dimensions (W × H × D): 667.0 mm × 327.0 mm × 930.0 mm (26.26'' × 12.87'' × 36.61'')
• Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)
• Storage Temperature: -40 °C to 65 °C (-104 °F to 149 °F)
• Operating Humidity: 8% to 80% (no condensation)
• Storage Humidity: 5% to 95% (no condensation)
• Power Supply: 800 W，50/60 Hz，100-240 VAC (Auto adjustment)，9.2-4.7 A
• Form Factor: 2U Rack
