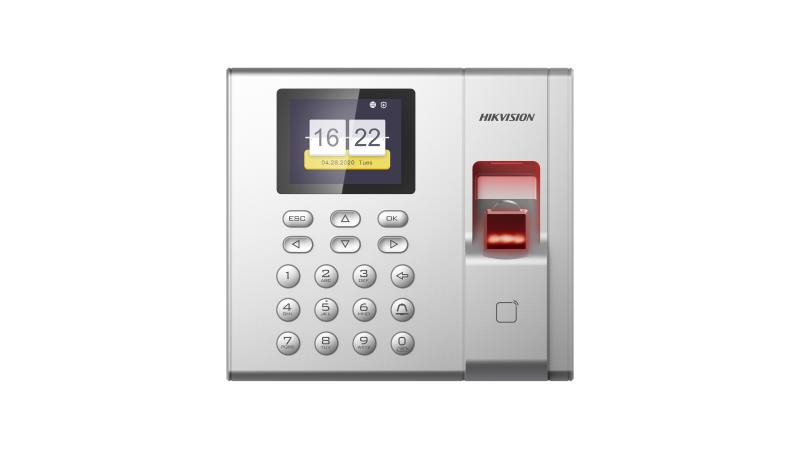

Hikvision K1T8003 Value Series Fingerprint Time Attendance Terminal - DS-K1T8003EF
- 2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in EM card reading module
- Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
- Support Access Control and Time Attendance Function, Optical Fingerprint Module
- Remotely opens door via Hik-Connect mobile client；Tamper alarm.
DATASHEET
Specification
Display
- Screen size: 2.4-inch
- Type: LCD-TFT display screen
Audio
- Audio output: 1 loudspeaker, 1 buzzer
Network
- Wired network: TCP/IP, 10/100Mbps, self-adaptive
- Communication protocol: TCP/IP, ISUP
Interface
- Network interface: 1
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- TAMPER: 1
- USB: 1
Capacity
- Card capacity: 1000
- Fingerprint capacity: 1000
- Event capacity: 100,000
Authentication
- Card type: EM card
- Card reading distance: 0 to 3.5 cm
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1 and 1:N
- Fingerprint recognition duration: ＜ 1 s
General
- Power supply: 12 VDC/1 A
- Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
- Working humidity: 0 to 90% (No condensing)
- Dimensions: 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
- Installation: Wall mounting
- Color: Silver
- Self Service Reports (SSR): Stand-alone operation, calculate attendance data and export reports via USB interface
- Weight:
Gross weight: 0.78 kg (1.72 lbs)
Net weight: 0.22 kg (0.48 lbs)
