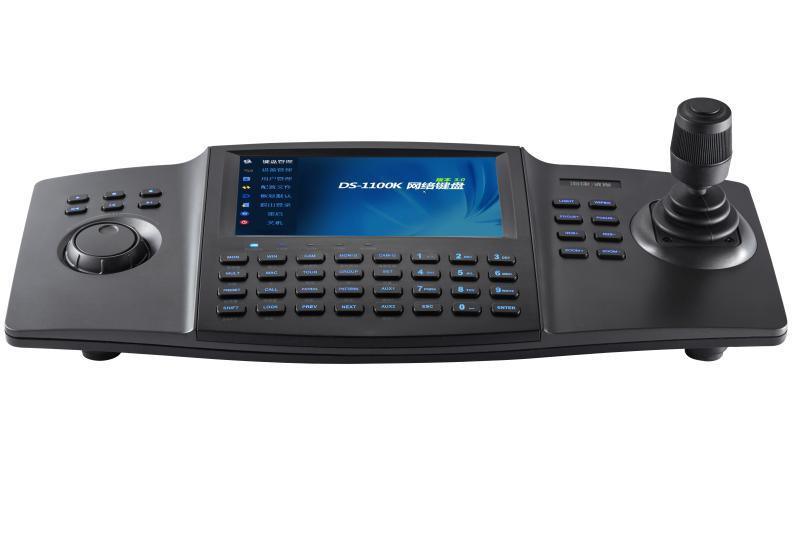

Hikvision Network Keyboard - DS-1100KI(C)
- Supports video wall division by areas
- Supports window opening/closing, window movement, window scaling, window division, sub-window scaling and other operations
- Supports group operation, macro operation and other batch operations
- Supports the real-time preview of the camera image via the keyboard
- Supports switching the camera location ID by using the PREV button and NEXT button on the keyboard
- Supports PTZ direction control via the 4-axis joystick
- Supports decoder playback via the video wall
- Supports the playback of the DVR and NVR video files via the keyboard and supports the picture capturing and clipping
- Supports device access via the SDK and ONVIF standard protocols
- Accessible to iSecure and HikCentral
- Allows 32 users (1 administrator and 31 operators) to manage a maximum of 4000 devices
- Supports adding, modifying, and deleting the camera locations in batches
- Supports import/export of configuration files
Specification
Interface
- Network Interface: RJ-45 100 M/1000 M self-adaptive Ethernet interface × 1
- Wi-Fi: Not supported
- USB Interface Type: USB 2.0 × 1
- Serial Interface: RS-485, RS-422
General
- Power Supply: 12 VDC
- Power Consumption: ≤ 15 W
- Dimensions (W × H × D): 435 mm × 193 mm × 110 mm (17.13 inch × 7.60 inch × 4.33 inch) (L × W × H)
- Gross Weight: 3.42 kg (7.54 lb.)
- Working Temperature: -10 °C to 55 °C (14°F to 131°F)
- Working Humidity: 10% to 90%
- Control Method: Network method, serial control
- Display: 7 inch LCD
- Joystick: 4-axis single button joystick
