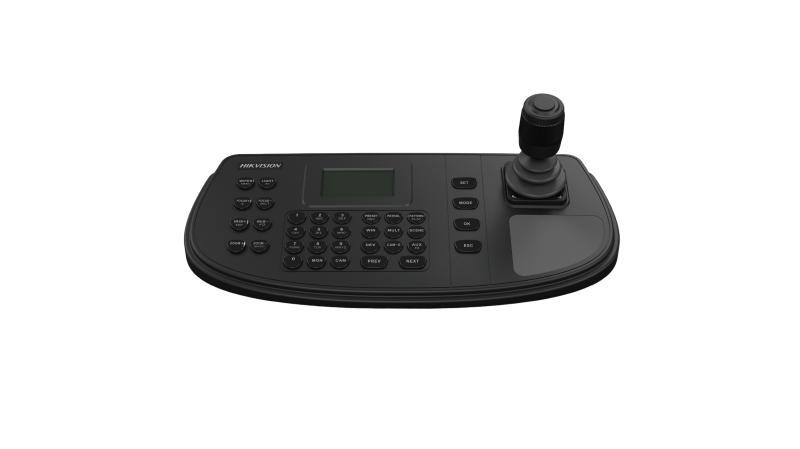

Hikvision Serial Keyboard - DS-1006KI
- Full-featured RS-485 keyboard
- Supports various cameras, NVRs and DVRs
- Flexible 4-axis joystick
- Buttons can be used to perform powerful functions
- 128 x 64 screen displays all important information
Specification
Interface
- USB Interface: USB 2.0 × 1
- Serial Interface: RS-232 × 1, RS-485 × 1, RS-422 × 1
- Wi-Fi: Not supported
- Network Interface: Not supported
General
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Net Weight: 1.6 kg (3.53 lb.)
- Dimensions (W × H × D): 348.2 mm × 169 mm × 123.2 mm (13.7 inch × 6.65 inch × 4.85 inch)
- Power Consumption: ≤ 4.7 W
- Power Supply: 12 VDC
- Control Method: Serial control
- Display: 128 × 64 dot-matrix screen
- Joystick: 4-axis single button joystick
