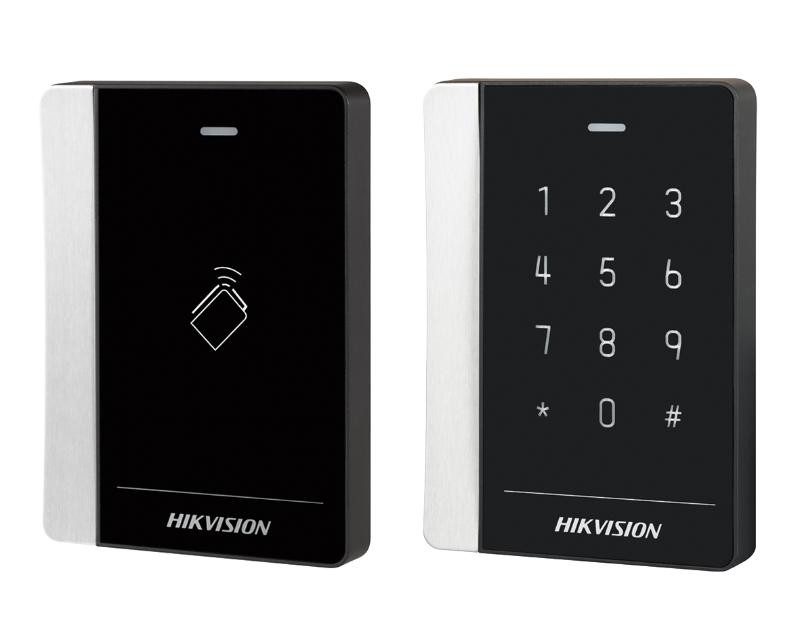

Hikvision Pro 1102A Series Card Reader - DS-K1102AE
- Built-in audible beeper
- RS-485 and Wiegand (W26/ W34) protocol
- Tamper-proof alarm
- Supports reading EM card (Frequency: 125 KHz) (DS-K1102AE/DS-K1102AEK/DS-1102AEM)
- Supports reading M1 card (Frequency: 13.56 MHz). (DS-K1102AM/DS-K1102AMK/DS-K1102AEMK)
DATASHEET
Specification
Authentication
- Card reading frequency:
DS-K1102AE/DS-K1102AEK/DS-K1102AEM/DS-K1102AEMK: 125 KHz
DS-K1102AM/DS-K1102AMK/DS-K1102AEM/DS-K1102AEMK: 13.56 MHz
General
- Power supply: 12V DC, ≤ 500 mA
- Power consumption: ≤ 2 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 121 mm × 86.5 mm × 14 mm (4.76" × 3.41" × 0.55")
- Installation: Applied for 120 Gang Box Only
- Weight: ≤ 0.15 kg (0.3 lb)
- Keypad;
DS-K1102AE/DS-K1102AM/DS-K1102AEM: No Keypad
DS-K1102AEK/DS-K1102AMK/DS-K1102AEMK: Keypad with 12 keys (0 to 9, *, #)
- Buzzer: Beeper
Function
- ID settings: via DIP Switch
