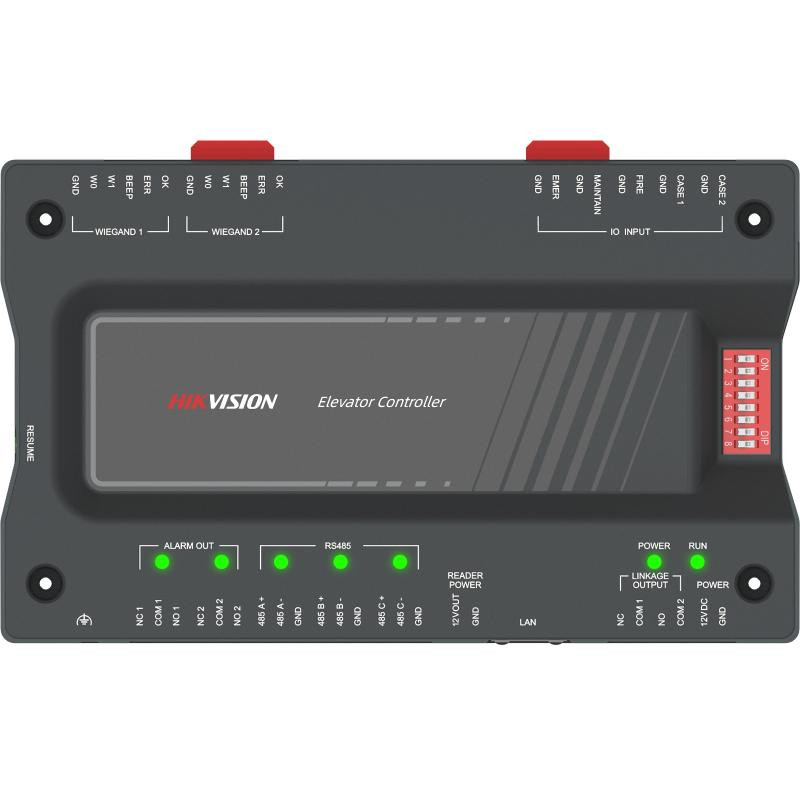

Hikvision Pro Elevator Controller - DS-K2220X(P)
- Comes with main board
- Storage with 50,000 users, 100,000 Cards, 300,000 events and 30,000 fingerprints. Up to 128 floors’ permissions
- Uplink communication: TCP/IP and RS-485
- Accessible card reader: 2 Wiegand readers or 2 RS-485 readers
- Input interface: emergency button×1, fire alarm button×1, maintenance button×1, case Input×2
DATASHEET
Specification
System
- Operating system: Linux
- Processor: 32 bit
Network
- Communication protocol: TCP/IP
Interface
- Alarm input: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
- Alarm output: 2 Relay Outputs
- RS-485: 3
- Wiegand: 2
Capacity
- User capacity: 10,000
- Fingerprint capacity: 10,000
- Card capacity:30,000
- Event capacity: 100,000
General
- Indicator;
1. Power On: Solid Green
2. Network Armed: Flashing Green, Network Not Armed: Solid Red
3. Serial Port Not Communicating: Light Off, Serial Port Communicating: Solid Green
4. Relay NC: Light Off, Relay NO: Solid Green
5. Network Disconnected: Light Off, Network Cable Connected: Solid Green, Flashing Green
- Power supply: 12 VDC±15%
- Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity: 0% to 90% (No Condensation)
- Dimensions: 166.85 mm × 101 mm × 29.5 mm (6.57" × 3.98" × 1.16")
- Installation: DIN Rail installation
Function
- Configuration via Web browser: Support
- Multi-factor authentication: Support
- Anti-passback: Support
- Multi-door interlocking: Support
