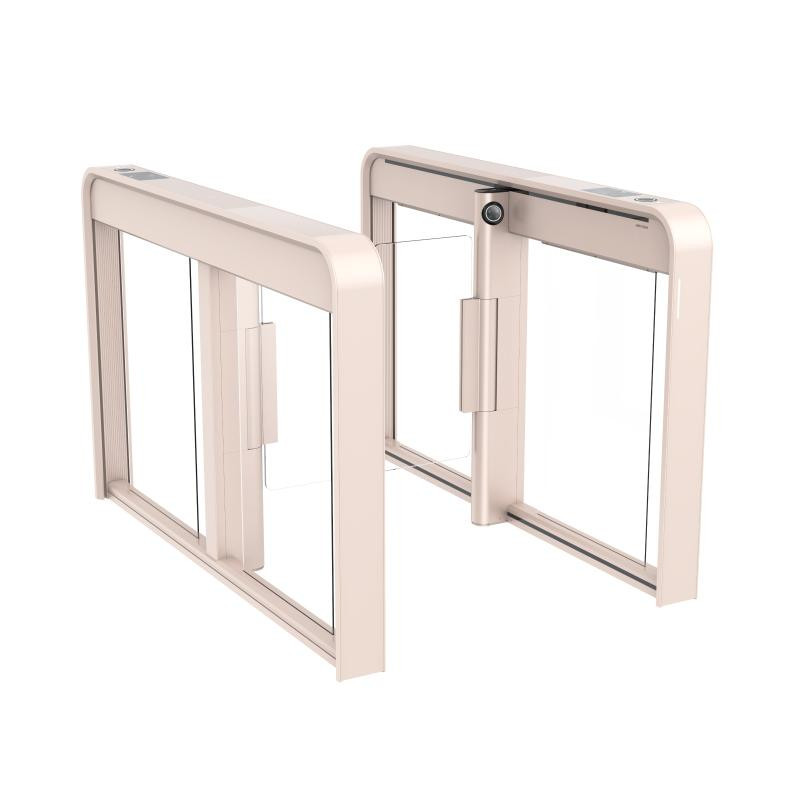

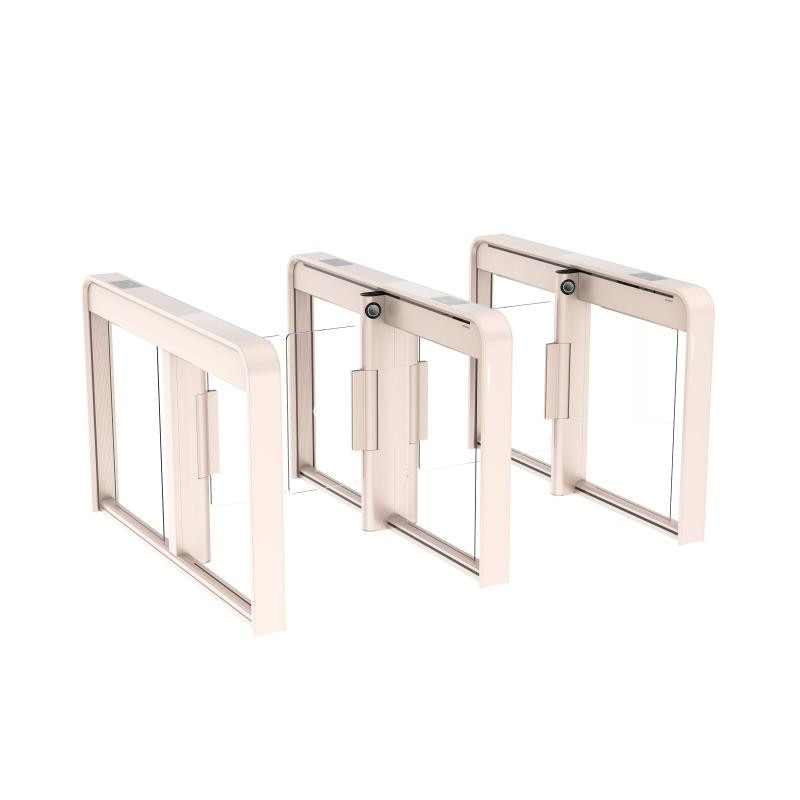

Hikvision Smart Pro Swing Barriers
- Aluminium alloy material with optional colour (default rose gold).
- 7-inch display screen and built-in face recognition camera.
- Supports palm or QR recognition (optional).
- Support PC & Mobile web configuration and self-diagnosis for maintenance.
- AP mode function for mobile phones (Android) to access more easily by a simple touch via NFC tag.
- Fire linkage: When the fire signal is triggered, the barrier will be open automatically for emergency evacuation.
System
- Motor: Servo motor
- MCBF: ≥ 11 million times
- Brake: Support
- Door open duration: 5 to 60 sec
- dToF sensor: 12
Display
- Screen size: 6.95-inch
- Operation method: Display screen
- Type: IPS screen
- Resolution: 600 × 1024
Video
- Lens: Prime Lens
- Video compression standard: H.264
- Resolution: 2 MP
- FOV:
Horizontal: 59°
Vertical: 108°
- WDR: Support
- Video standard: PAL by default, support NTSC
- Focal length: 2.8mm
- Aperture: F1.6
Audio
- Audio compression standard: G.711U
- Audio compression bitrate: 16 Kbps
- Audio output: Support
- Volume adjustment: Support
- Power output: 5.5W
Network
- Wired network: Support,10M/100M
- Wi-Fi: For AP mode only
Interface
- Network interface: 1
- Exit button:
Main: 1
Sub: 1
- Alarm output: 4
- Fire alarm input: 1
- Case input: 2
Hardware
- Access controller: Support
- Supercapacitor: Support
- Network switch: Not supplied
Capacity
- Face capacity: 100,000
- Card capacity: 500,000
- Event capacity: 1000,000
- Palm print and palm vein capacity: 10,000
Authentication
- Face recognition distance: 0 m to 2 m
- Face recognition accuracy rate: ＞99%
- Face recognition duration: ＜200 ms
- Card: M1 or Desfire card
- Card reading frequency: 13.56 MHz
- Card reading distance: 3cm
- Card reading duration: ＜1s
Function
- Configuration via PC Web: Support
- Configuration via mobile Web: Support
- Hik-Connect: Support
- Multi-factor authentication: Support
- Face anti-spoofing: Support
- Face mask recognition: Support
- Built-in face recognition: Support
- Communication protocol: ISAPI
- Keyfob: Support, 433 MHz/868 MHz, within 50 m
General
- Lane width: 550 mm to 1100 mm (21.7" to 43.3")
- Barrier material: 10 mm acrylic glass
- Pedestal material: Aluminium alloy
- Indicator: Lane status indicator, barrier light
- Power consumption:
Standby: 70 W
Working: 180 W
Peak: 280 W
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 95% (No condensing)
- Protective level: IP40
- Dimensions:
Without package: 1550 mm × 120 mm × 1002 mm (61.02" × 4.72\" × 39.45\")
With package: 1760 mm × 500 mm × 1225 mm (69.30 × 19.69\" × 48.23\")"
- Net:
Left: 34.19 kg (75.375 lb)
Middle: 42.46 kg (93.6 lb)
Right: 34.76 kg(76.63 lb)
Gross:
Left: 62.91 kg (138.7 lb)
Middle: 71.52 kg (157.67 lb)
Right: 63.58 kg (140.17 lb)
- Power supply method: 100 to 240 VAC~, 50/60 Hz, 1.6A
- Colour: Rose gold
- Language: English, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Interconnecting cable length: 5.5m
Configuration
- Lane width: 650;750;900;1100
- Pedestal length: 1550 mm
- Module selection: NO
- Pedestal width: 120 mm
- Wall distance: 20 mm
- Base: YES
- Barrier material: Acrylic glass
- Application environment: indoor
- Authentication mode: Card; Face; QR code
- Card type: EM; M1; Desfire
- Recommended width: 650 mm
- Base model: DS-K6B630X-BASE650-S
- Product type: Swing barrier
- Remote controller type: 433Mhz;868Mhz
- Movement Protrusion Width: 71.6 mm
- Convert Face: NO
- Door Height: Default (0.85m)
- Door wing gap: Default:50mm
- Integrated Auth: Card; Face; QR code; Screen
