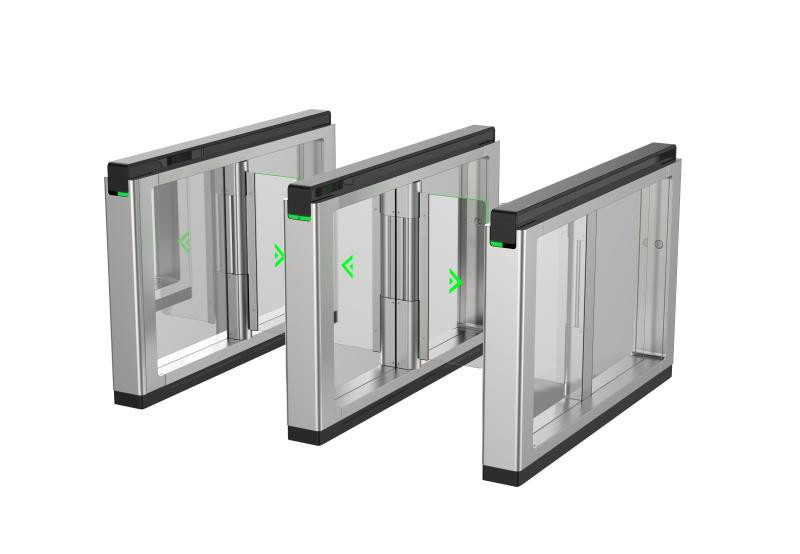

Hikvision Ultra Swing Barriers- DS-K3B801BX
- TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.
- Bidirectional (Entering/Exiting) lane:The barrier opening and closing speed can be configured according to the visitors flow
- The door wings will be locked or stop working when people are nipped.
- Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay.
- Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
- Self-detection, Self-diagnostics, and automatic alarm.
Specification
System
- Motor: Servo motor
- MCBF: ≥ 10 million times
Network
- Communication protocol: ISAPI,ISUP5.0
- Wired network: 10/100Mbps self-adaptive Ethernet
Interface
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Alarm output: 2
- TAMPER: YES
- RS-485: 4
- RS-232: 2
- Wiegand: 2
- Fire alarm input: 1
- Case input: 2
Hardware
- Access controller: Supplied
- Supercapacitor: Supplied
Capacity
- Fingerprint capacity: 5,000 (optional)
- Card capacity: 1,000,000
- Event capacity: 1,000,000
Function
- Configuration via Web browser: Support
General
- Throughput:
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method
- IR light detectors: 24 pairs
- Lane width: 550 mm to 1100 mm (21.65" to 43.31")
- Barrier material: Tempered glass
- Pedestal material: SUS304 stainless steel with the thickness of 2 mm (0.08")
- Power: 100 to 240 VAC; 50 to 60 Hz
- Power consumption: 65W (stand by)
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 95% (No Condensing)
- Dimensions:
With packaging: 1688 mm × 348 mm × 1318 mm (66.5" × 13.7\" × 51.9\")
Without packaging: 1500 mm × 160 mm × 1010 mm (59.1 × 6.3\" × 39.8\")"
- (Net) Left: 100.5kg (221.56 lbs) Middle: 122.4 kg (269.85 lbs) Right: 104.4 kg kg (230.2 lbs)
(Rough) Left: 140.5 kg (309.76 lbs) Middle: 162.4 kg (350.05 lbs) Right: 144.4 kg (310.4 lbs)
- Approval: CE/CB/RoHS/REACH/WEEE
