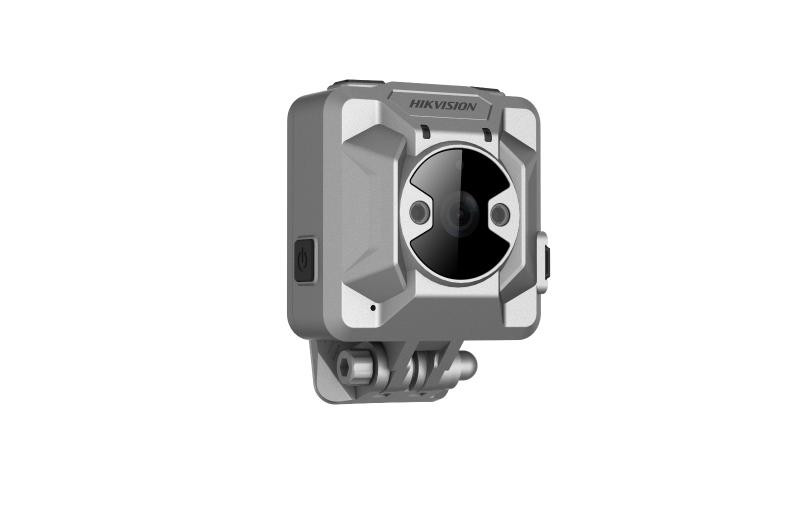

Hikvision Wi-Fi Helmet Camera - DS-MCH208/32G/GLE

• Up to 1080p/30 fps recording resolution
• H.264/H.265
• High brightness white light supplement.
• Wide-range lens with 84° horizontal FOV
• IP67
• The battery is non-removable

Datasheet

Specification

CPU

• CPU;

Single core,

32 bit,

Main frequency: 0.96 GHz

Camera

• Image Sensor: 1/3" progressive scan CMOS
• Max. Recording Resolution: 1920 × 1080
• Min. Illumination: Color: 0.5 Lu×@ (F2.0, AGC ON)
• White Light: 2 white light(s)

Lens

• Focal Length: 4.15 mm
• Aperture: F2.0
• FOV;

  Horizontal FOV: 84°

  Vertical FOV: 52°

  Diagonal FOV: 102°

Video

• Video Compression: H.264, H.265
• Video Format: PS, MP4
• Main Stream: 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
• Sub Stream: 30 fps (720 × 576)

Audio

• Audio Compression for Video Recording: G722_1,AAC
• Audio Compression for Group Intercom: G711_A,G711_MU,G722_1
• Audio Bit Rate: G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps)


• Image Format: JPEG
• Image Resolution;

  5 MP,

  16 MP,

  30 MP,

  40 MP

Storage

• RAM: 128MB
• ROM: 32 GB

Wireless Network

• Wi-Fi Protocol: 802.11 a/b/g/n
• Positioning Mode: GPS
• Cellular Network:

  Only available for models with /GLE:

  FDD -LTE: B1/B3/B5/B7/B8/B20

  TDD -LTE: B38/B40/B41

• Wi-Fi Frequency Band: 2.412 to 2.472 GHz

Network

• Protocol: HTTPS, RTSP, NTP, FTP
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Security

• Encryption: AES128，AES256
• Watermark: Supported

Interface

• Audio Type: 1 built-in mic(s),1 speaker(s)
• Indicator: 2 Indicator(s) for Charging/Working/Recording
• SIM Card: Only available for models with /GLE :1 (Nano-SIM)
• Button: Power, Picture capture, SoS
• Charging Interface: Type-C
• USB: USB 2.0
• Laser Positioning: Supported

General

• Operating System: Linux
• Power: 5 VDC, 2.0 A, max. 10 W
• Client: HikCentral Pro, HikCentral Master Lite
• Speaker: 1 Built-in speaker, Max. power consumption: 1.3 W, Max. sound pressure level: 96dB (10 cm)
• MIC: Supported
• Gyroscope: Supported
• Operating Condition;

Temperature: -20 °C to +55 °C (-4 °F to +131 °F)

Humidity: 90% or less (non-condensing)

• Dimension: 55 mm × 55 mm × 31 mm (2.2" × 2.2" × 1.2")
• Weight: 110 g (without mounting) (0.24 lb.)
• Vibration Motor: Not supported

Battery

• Capacity: 3300 mAh
• Battery Type: Lithium-ion battery, integral
• Charging Time: ≤ 4 h
• Battery Duration: Up to 12 h in 720p resolution¹
