IEI Fanless DIN-Rail Embedded System - DRPC-242-ADL-P
Ultra-slim four-port Ethernet DIN-Rail PC, ensuring efficient workflow in industrial and commercial environments

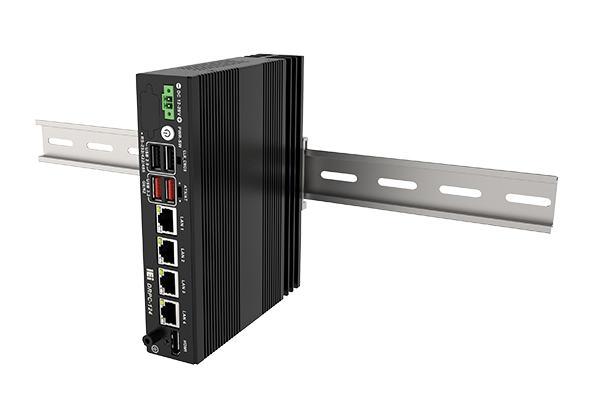

The DRPC-124 is a super-slim DIN rail mountable device that is only 3.5 cm wide, which is 40% smaller than its predecessor, allowing you to optimize your installation space and efficiency. Powered by Intel Celeron® Processor J6412 and equipped with extensive network interfaces, 12-24V DC power input, and a rigid -10°C to 50°C operating temperature, it masterfully caters to a wide range of industrial/commercial applications including virtual router, motion control, and machine vision deployments.
Optimized for Improved Efficiency and Performance with Intel Celeron Processor
Powered by an Intel Celeron J6412 quad-core CPU, backed by Intel® UHD Graphics, the DRPC-124-EHL delivers excellent processing and graphical competencies, while maintaining power-efficient operations. Bolstered by 8 GB LPDDR4x on-board memory for multitasking demands, the DRPC-124-EHL ensures dependable and cost-effective performance to meet escalating edge computing needs.
Ultra Slim, Easy Installation in Limited Space
Weighing only 1.7lbs with dimensions 199 mm (L) x 119 mm (W) x 35 mm (D), this compact design is created by optimizing the cooling structure and I/O simplification, resulting in a 30% reduction in installation area (compared to our conventional model). It has achieved the most space-saving size in the industry, making the DRPC-124 ideal for areas with restricted space such as wall enclosures, internal machinery, and collaborative robots, enhancing workspace usage without trading off performance.

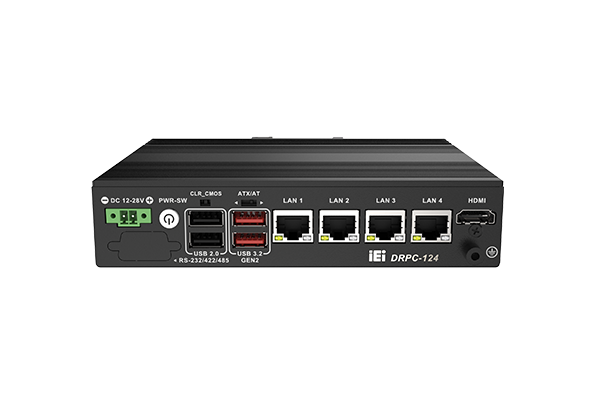

Quadruple LAN Ports Adoption for Varied Applications
Featuring a array of four distinct Local Area Network (LAN) por ts, this inventive network strategy illustrates a smart configur ation to markedly augment both safety and productivity.
EtherCAT Motion Controller
Serving as an EtherCAT (Ethernet for Control Automation Technology) controller for automated machines, the DRPC-124-EHL fuses a sole Intel I210IT Gigabit Ethernet controller tailored for EtherCAT technology, enabling instantaneous communication and delivering exact control.
Micro Firewall Appliance
The DRPC-124-EHL provides ideal hardware foundations for profes sional firewall appliance utilization in an enterprise field and even in harsh environments, such as factory automation, telecommunication, building automation, and transportation. Four physically independent Ethernet ports allow you to segment your entire network into four regions.
Device to Device Connection
It provides rich 1GbE and 2.5GbE network interfaces to satisfy a wide range of deployment needs. No need to purchase an additional switch to expand Ethernet ports. High-resolution, rapid-response image capture via IP cameras, instantaneous sensors, and other data-heavy devices benefit from the improved efficiency and reliability delivered by a direct network connection.
Supports Up to Two PCIe Gen3 SSDs
The DRPC-124-EHL accommodates three storage entities within its compact system, assigning one drive for the operation system, a distinct drive for application software and the rest for backup objectives. Furthermore,it allows you to install dual PCIe Gen3 x2 SSDs, which can achieve twice the data transfer speeds of the previous PCIe Gen2 link.
Fanless Chassis with Effective Trim Heatsink Design
To streamline the system footprint, IEI formulated a compact passive cooling structure to attain the objective, not only minimizing the frame size but also channeling heat from the hot spot to cast out fins towards the DIN rail for extended thermal dispersion.
2-Step Easy Upgrade SSD
Users need only unscrew and lift the chassis cover to access the memory module, storage drives, and wireless card for easy upgrades.
Features
- Compact Industrial Mini PC
- Fanless system
- Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
- Four GbE LAN
- CE/FCC compliant
