IEI Fanless DIN-Rail Embedded System Elkhart Lake Intel Celeron Solution (up to 4 Cores) - DRPC-W-EHL
High Value Fanless DIN-Rail Embedded System
IEI DRPC-W series are compact, DIN-rail mounted embedded systems designed for IEI 3.5" single board computers. Its compact dimensions are appropriate for applications installed with limited space but requiring multiple I/O connectivity and enhanced performance. IEI DRPC-W series are designed to handle communication on the factory floor for IoT gateway, motion and vision applications.
Optimized for Improved Efficiency and Performance with Intel Celeron Quad Core J6412 Processor
Designed with 10nm Intel Celeron Quad Core J6412 processor and Intel UHD graphics, the DRPC-W-EHL fanless embedded system offers both excellent performance and energy efficiency. With a 2.0 GHz clock speed and turbo up-to 2.60 GHz, the Intel Celeron J6412 Processor powers the core of the DRPC-W-EHL fanless embedded system and offers 2 times performance improvement over the predecessor Apollo Lake.
Time-to-Market Customization
The DRPC-W series’ enclosure is designed for 3.5" single board computers. With customizable I/O plates, the DRPC-W series allows customization to satisfy various requirements by using IEI's extensive 3.5" SBCs, WAFER series, offering diverse platform options from low-power to extreme performance. This helps assure an efficient and quick integration for customers' applications.
*Customized by project base
Easy Assembling & Maintenance
With an easy-to-open bottom cover, the DRPC-W series can deliver advantages of quick maintenance and Configure-to-Order Service (CTOS) for customers to reduce potential time to market and cost consumption.
- Fast assembly for all accessories
- Simple steps to open enclosure for maintenance, such as M.2, HDD, memory modules
- Accelerate system integrator's local configure-to-order assembly service for end customers
Scalable Wireless Communication Enables Remote Deployments
The DRPC-W-EHL is built with multiple wireless connectivity options necessary for remote and mobile deployments, which include Bluetooth, WiFi and 4G/LTE that enable connections with a variety of industrial IoT devices.
*Wireless M.2 modules are optional

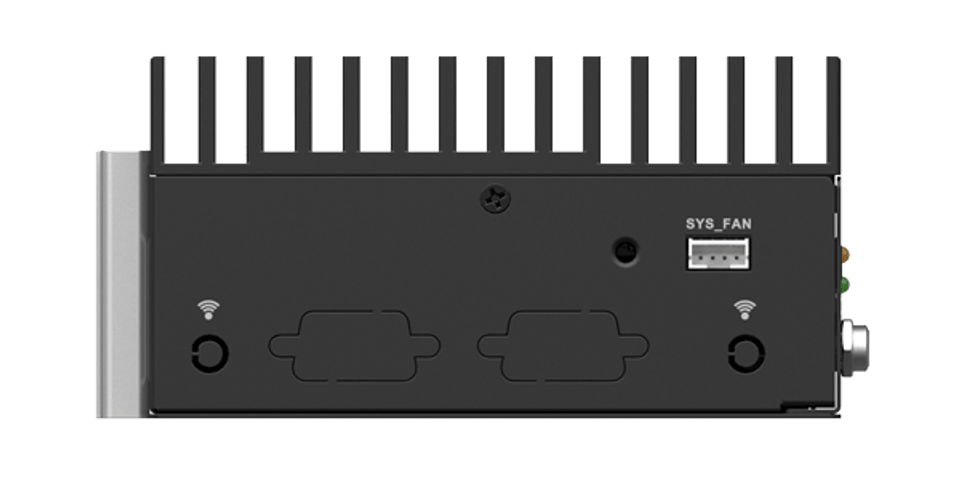

Advanced High-efficiency Fan Kit Releases Extreme Computing Power
For computing-intensive applications, users could opt to add an external fan for an active cooling solution maintaining high system performance in high temperature environment. This design also brings high reliability by preventing dust or particles from getting into the hardware, and it is easy to disassemble and clean.

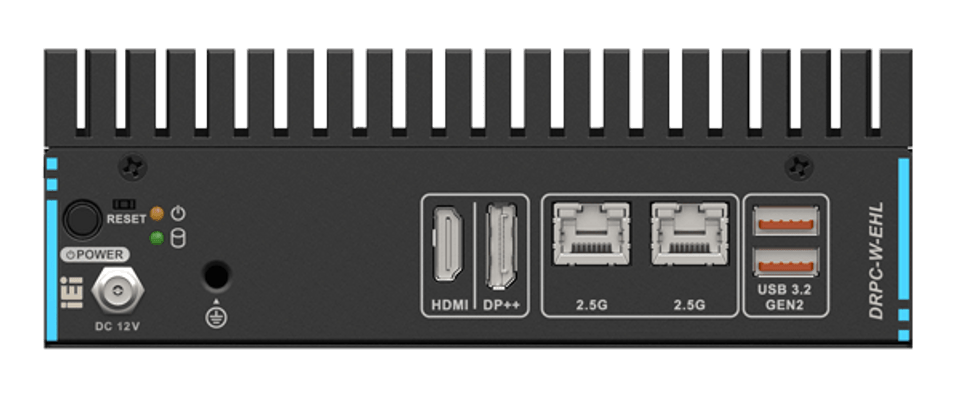

Features
-
Supported CPU: Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
-
Support dual independent display
-
2 x 2.5GbE ports
-
1 x M.2 A Key
-
1 x M.2 B Key (with SIM card slot)
-
CE/FCC compliant
