EnGenius SN-UL-AK20L-IND. Antenna gain level (max): 2.7 dBi, Frequency band: 0.863 - 093 GHz, Impedance: 50 Ω. Antenna connector type: N-type, Connector gender: Female, Polarization: Vertical polarization. Height: 108 mm, Diameter: 17 cm, Weight: 320 g. Quantity per pack: 1 pc(s)

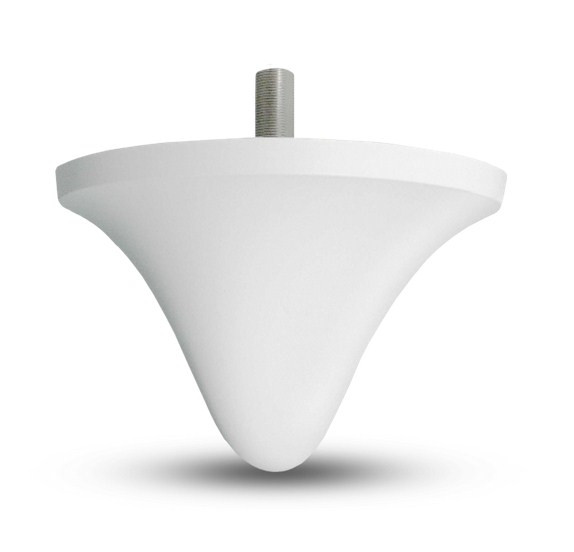

The SN-UL-AK20L-IND is a 900MHz external antenna kit which connects to base stations for EnGenius DuraFon or FreeStyl phone systems. Includes 20-meters of LMR-400 cable.
Optimal radiation pattern provides the best indoor coverage. High quality low loss LMR-400 cable ensures minimal attenuation of the received and transmitted signal.
Specifications
| General | |
|---|---|
| Brand | EnGenius |
| Manufacturer part number | SN-UL-AK20L-IND |
| HSSL part number | UK-ENG-SN-UL-AK20L-IND |
| UPC / GTIN | 0655216005976 |
| Product type | Network Antennas |
| Performance | |
| Frequency band | 0.863 - 093 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 83° |
| Vertical beam width | 83° |
| Antenna gain level (max) | 2.7 dBi |
| Features | |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Product colour | White |
| Power handling | 10 W |
| Cable length | 20 m |
| Mounting | Ceiling |
| Purpose | Indoor |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 65 °C |
| Weight & dimensions | |
| Height | 108 mm |
| Diameter | 17 cm |
| Weight | 320 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-ENG-SN-UL-AK20L-IND.
