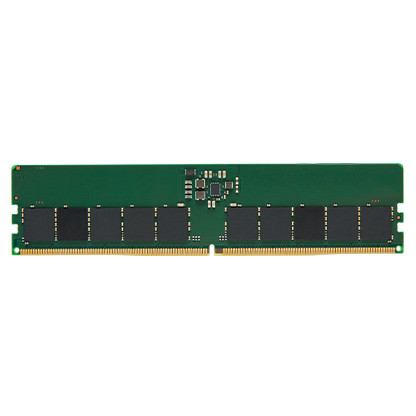

Kingston Technology KSM52E42BS8KM-16HA. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 42, ECC, Product colour: Black, Green
Kingston's KSM52E42BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Documents
Specifications
| General | |
|---|---|
| Brand | Kingston Technology |
| Manufacturer part number | KSM52E42BS8KM-16HA |
| HSSL part number | UK-KIN-KSM52E42BS8KM-16HA |
| UPC / GTIN | 0740617336016 |
| Product type | Memory Modules |
| Features | |
| On-Die ECC | Yes |
| CAS latency | 42 |
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5200 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 1 |
| Memory voltage | 1.1 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Product colour | Black, Green |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Other features | |
| Doesn't contain | Halogen |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number UK-KIN-KSM52E42BS8KM-16HA.
Additional information
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
